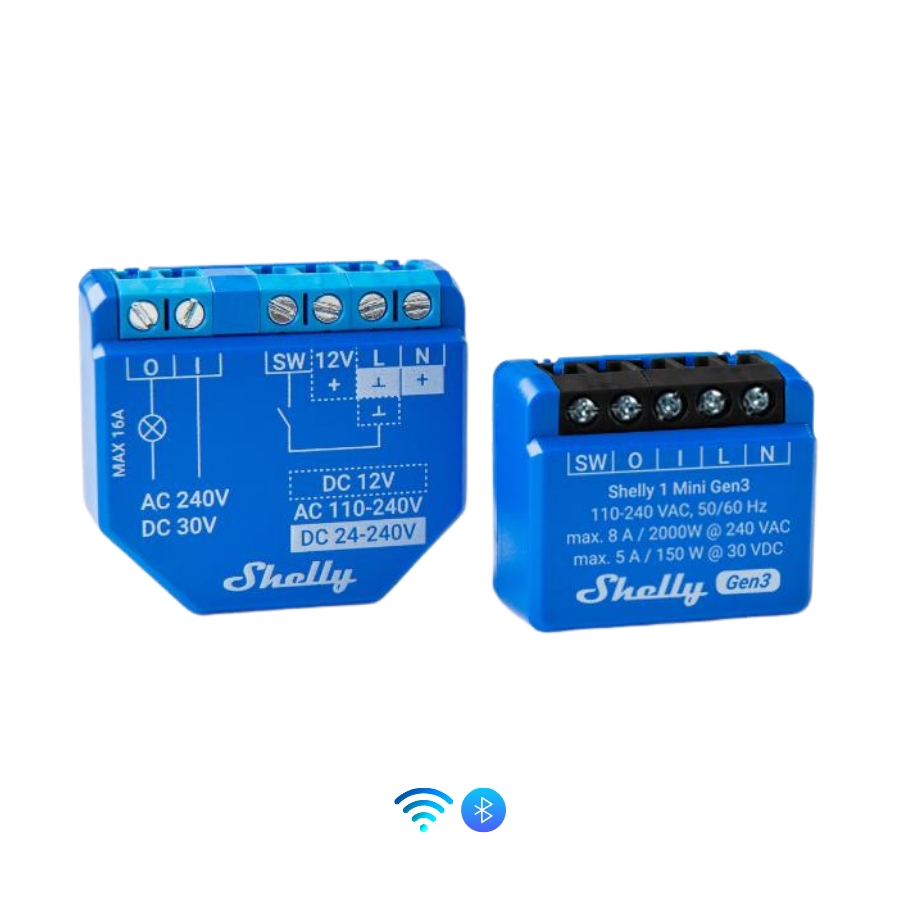

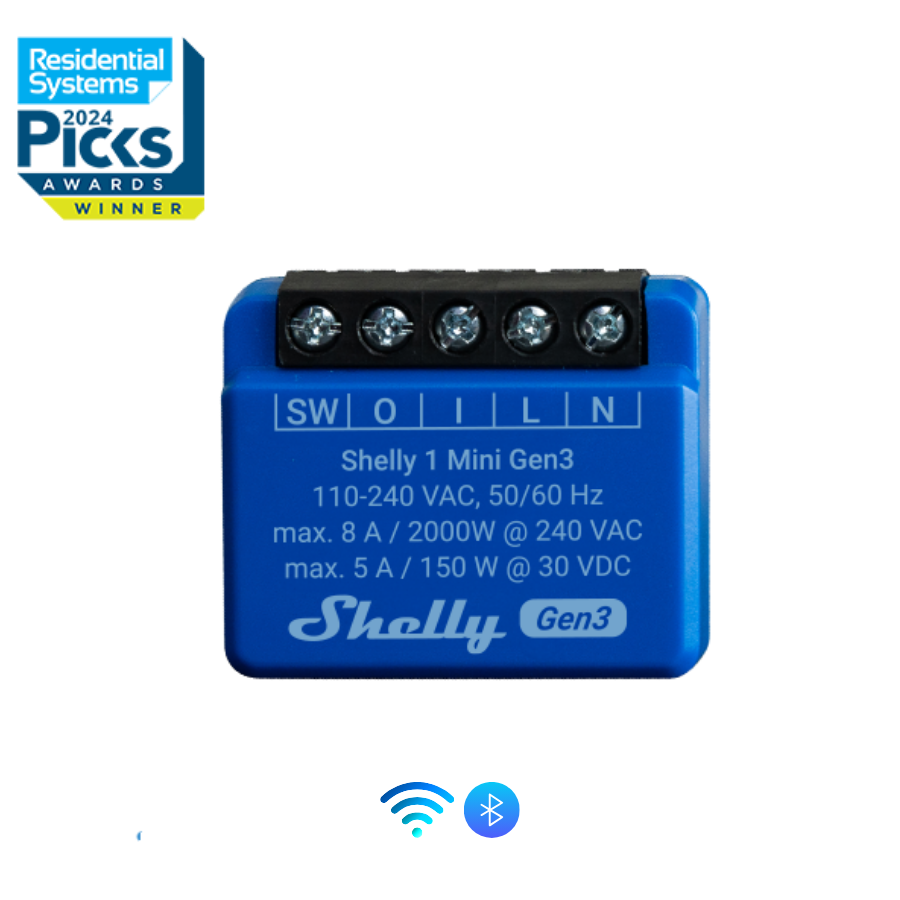

Shelly 1 Mini Gen3 — Relé WiFi Ultracompacto con Contacto Seco
El Shelly 1 Mini Gen3 es un relé inteligente WiFi y Bluetooth de formato ultracompacto con contacto seco (potencial libre). Procesador ESP Shelly Gen3 de nueva generación, mayor velocidad y memoria. Gateway BLU integrado.
Especificaciones clave
- Conectividad: WiFi 802.11 b/g/n (2,4 GHz) + Bluetooth BLE 5.0
- Alimentación: 100-240V AC / 12-30V DC
- Carga máxima: 8A / 240V AC — 5A / 30V DC, contacto seco
- Consumo propio: <0,3W
- Protocolos: MQTT, REST API, WebSockets, Scripting mJS
- Gateway BLU y extensor de rango WiFi integrado
Compatible con Home Assistant, Alexa, Google Home, MQTT y Scripting mJS. Sin hub propietario ni suscripciones.
Conectividad
- Protocolo Wi-Fi: 802.11 b/g/n
- Banda RF: 2401 – 2495 MHz
- Potencia RF máx.: <20 dBm
- Alcance Wi-Fi: Hasta 30 m interiores / 50 m exteriores
- Protocolo Bluetooth: BLE 5.0
- Alcance Bluetooth: Hasta 10 m interiores / 30 m exteriores
Especificaciones técnicas
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in |
| Weight: | 19 ±1 g / 0.65 ±0.04 oz |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Blue |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply: | 110 - 240 VAC |
| Relay: | Dry, NO contact, 1-pole, µ contact |
| External protection: | 10 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | < 1.2 W |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30 V |
| Max switching current AC: | 8A |
| Max switching current DC: | 5A |
| Max switching power AC: | 2000 W |
| Max switching power DC: | 150 W |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4,2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| MCU | |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| MQTT: | Yes |
| UDP: | Yes |
| Scripting: | Yes |
