Raex Automated Curtain System

WiFi, Bluetooth, and Matter Smart Curtains with Ultra-Quiet Motor

The Raex automated curtain system allows for easy motorization of curtains using a smart motor with WiFi, Bluetooth, and Matter compatibility. It includes a pre-assembled extendable track and a silent motor designed for residential automation and advanced smart homes.

The pack combines the RAEX MP46 WIFI with the RAEX P35, offering a ready-to-install solution with central opening and smart control from an app, voice assistants, or automations.

Main Features

• Compatible with WiFi, Bluetooth, and Matter
• Ultra-quiet motor (<40 dB)
• Pre-assembled extendable track
• Central opening
• Configurable positioning
• Soft start and stop
• Compatible with Home Assistant, Alexa, Google Home, and SmartThings
• Control from Shelly Smart Control app
• Compatible with Shelly BLU remotes and external switches
• Scheduling, scenes, and automation functions

Extendable track and silent operation

The included track allows for faster and more adaptable installation thanks to its extendable format:

• Adjustable length: 2.4 to 4 meters
• Central opening
• Pre-assembled system ready to install

The motor incorporates silent operation with reduced noise levels:

• 30 dB(A) sound power
• 35 dB(A) sound pressure

Smart control and automation

Allows for:

• Opening and closing curtains from your phone
• Automating schedules
• Creating smart scenes
• Voice control
• Compatible manual operation

Compatible with:

• Home Assistant
• Amazon Alexa
• Google Home
• Samsung SmartThings

Technical Specifications

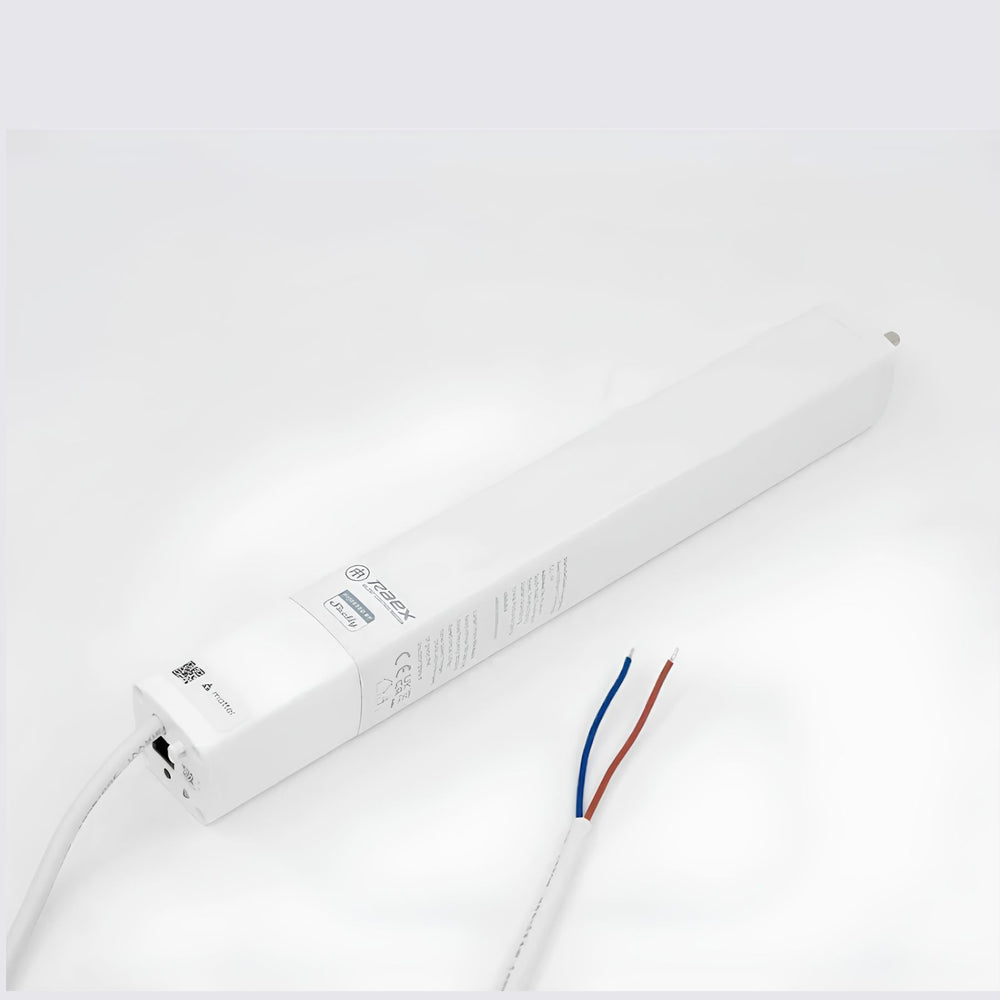

RAEX MP46 WiFi Motor

• Power supply: 100–240 V AC
• Frequency: 50/60 Hz
• Rated torque: 1 Nm
• Maximum torque: 1.2 Nm
• Selectable speed: 75 / 90 / 110 rpm
• Protection: IP41
• Working temperature: 0 °C to +50 °C

RAEX P35 Track

• Type: extendable
• Length: 2.4–4 m
• Central opening

Pack contents

• 1x RAEX MP46 WIFI
• 1x RAEX P35
