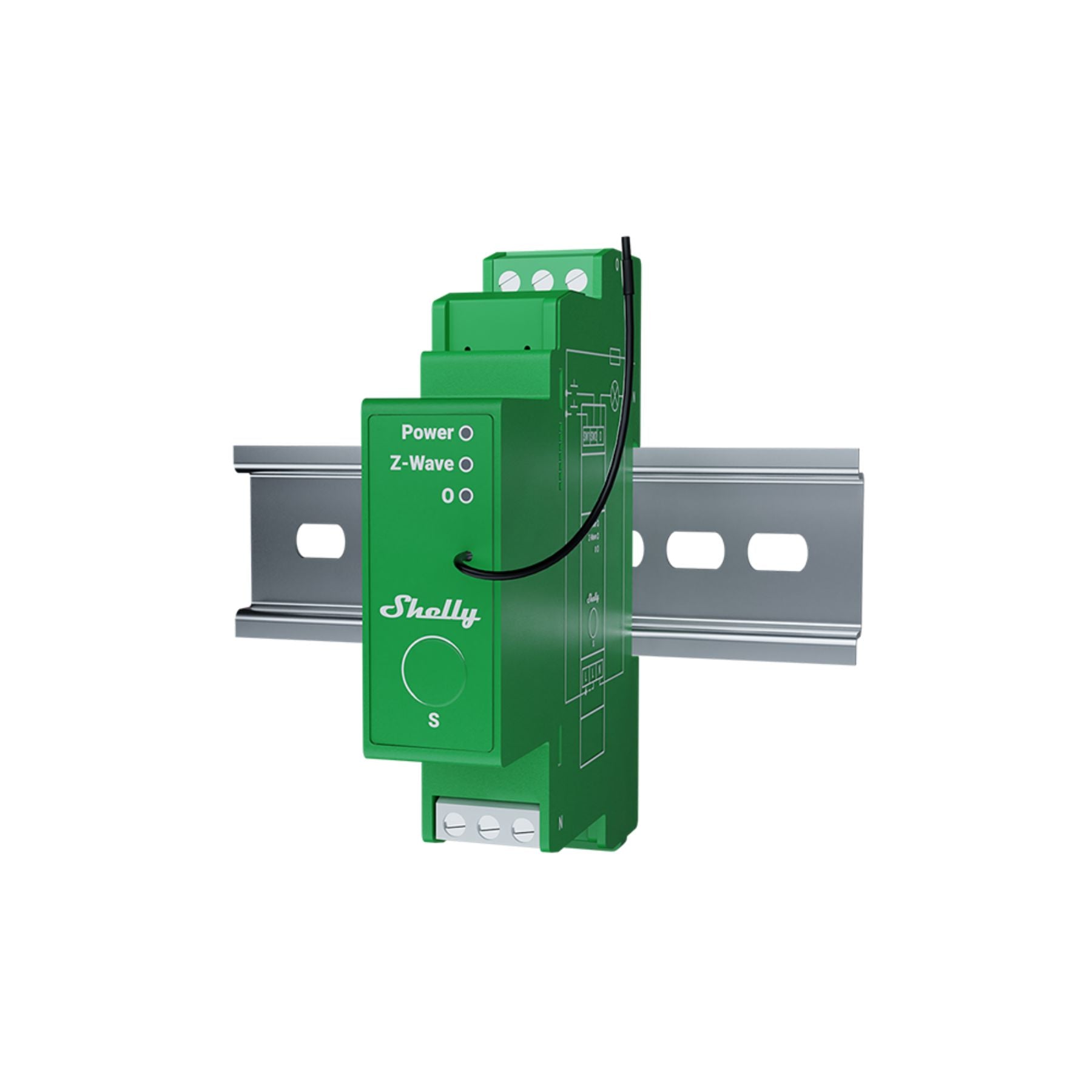

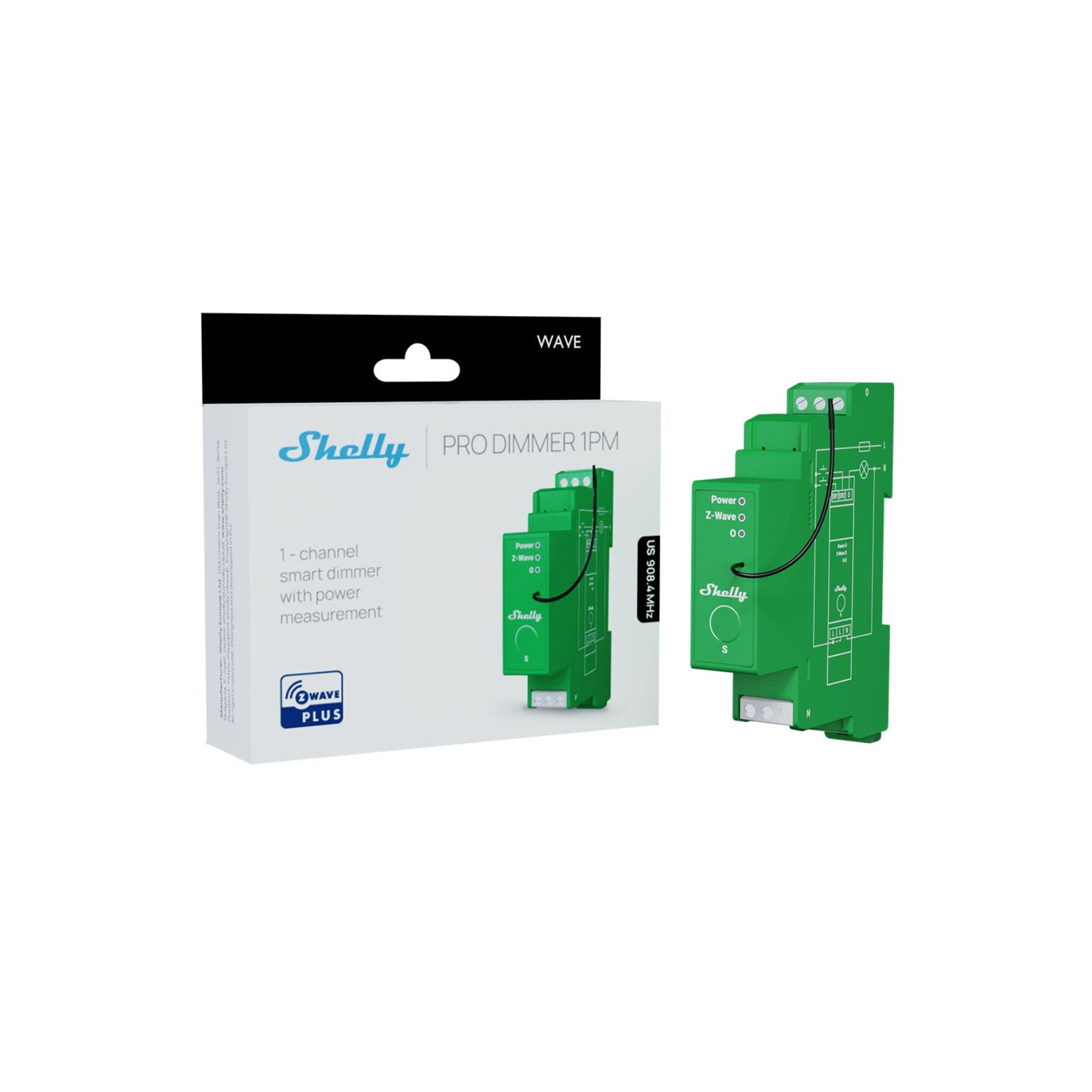

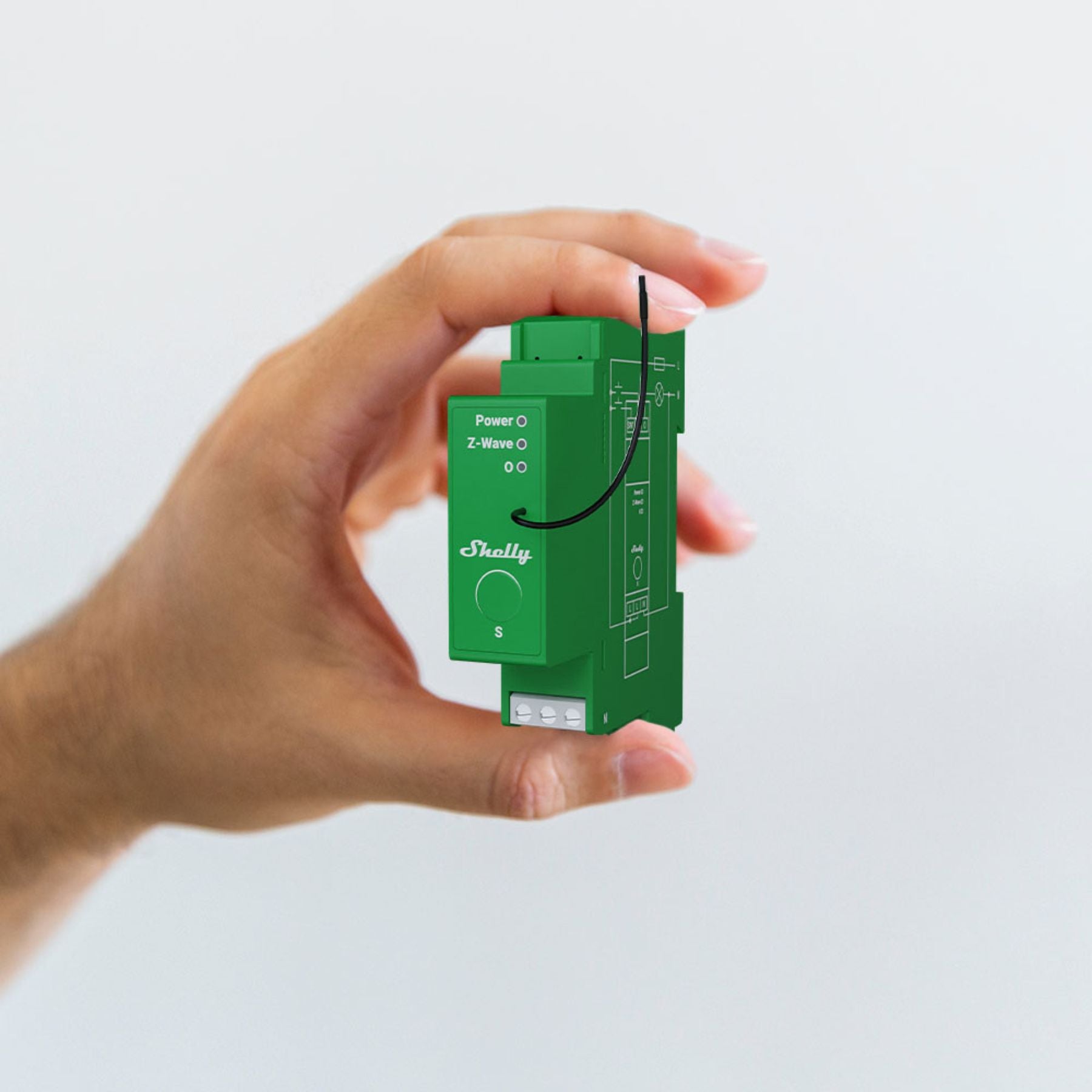

Shelly Wave Pro Dimmer 1PM

Shelly Wave Pro Dimmer 1PM — DIN Rail Single-Channel Z-Wave Dimmer with Metering

The Shelly Wave Pro Dimmer 1PM (model QPDM-0A2P01EU) is a single-channel Z-Wave dimmer with integrated power metering, designed for DIN rail mounting. Compatible with LED, incandescent, and halogen lamps. No proprietary hub or subscriptions required.

Technical Specifications — Shelly Wave Pro Dimmer 1PM

• Model: QPDM-0A2P01EU
• Protocol: Z-Wave Plus S800, 868.4 MHz
• Mounting: DIN Rail
• Channels: 1 dimming channel
• Load Compatibility: Dimmable LEDs, incandescent, and halogen
• Energy Measurement: Yes — watts (W) and kilowatt-hours (kWh)
• Inputs: Configurable as switch (bi-stable) or pushbutton (monostable)
• Operating Temperature: -20 – +40°C
• Certifications: CE, RoHS
• Z-Wave Security: SmartStart, S2 Authenticated
• OTA: Wireless firmware updates

Key Features

• Integrated power metering: monitors real-time consumption (W and kWh)
• DIN rail mounting: direct integration into professional electrical panels
• Compatible with LED, incandescent, and halogen: maximum load flexibility
• Configurable input modes: 1 button or 2 buttons for intensity control
• Configurable Soft ON/OFF
• SmartStart: simplified Z-Wave inclusion via QR code

Compatible with

• Home Assistant (Z-Wave JS — local, no cloud)
• Amazon Alexa (via Z-Wave gateway)
• Google Home (via Z-Wave gateway)
• Any certified Z-Wave Plus controller

Use Cases

• Lighting dimming in hotels, offices, and commercial premises
• Control and monitoring of decorative lighting consumption
• Professional automation of lighting circuits in electrical panels
• Smart lighting scenes with fine intensity control

Official Shelly distribution. Shipping from Spain. Official Shelly warranty.
