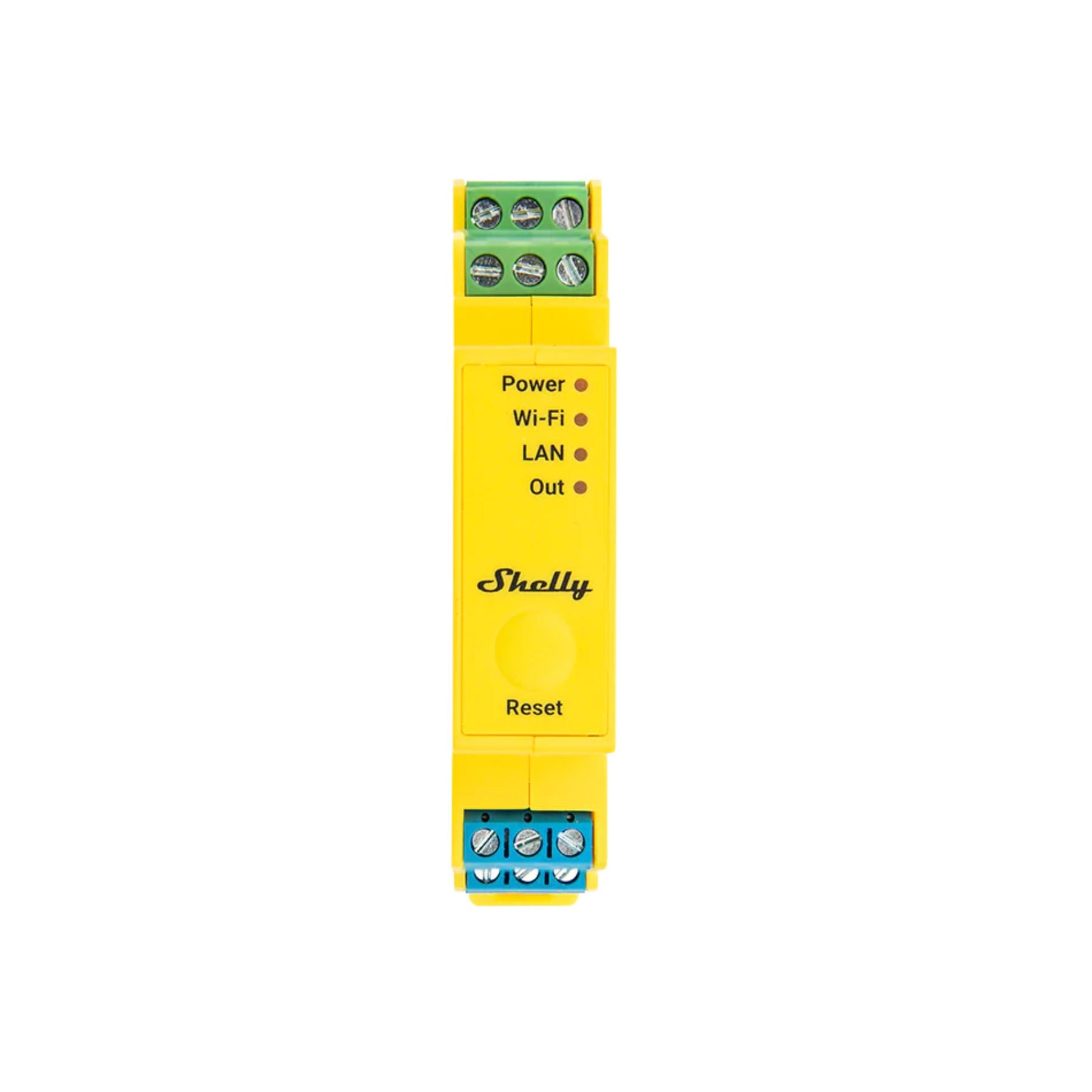

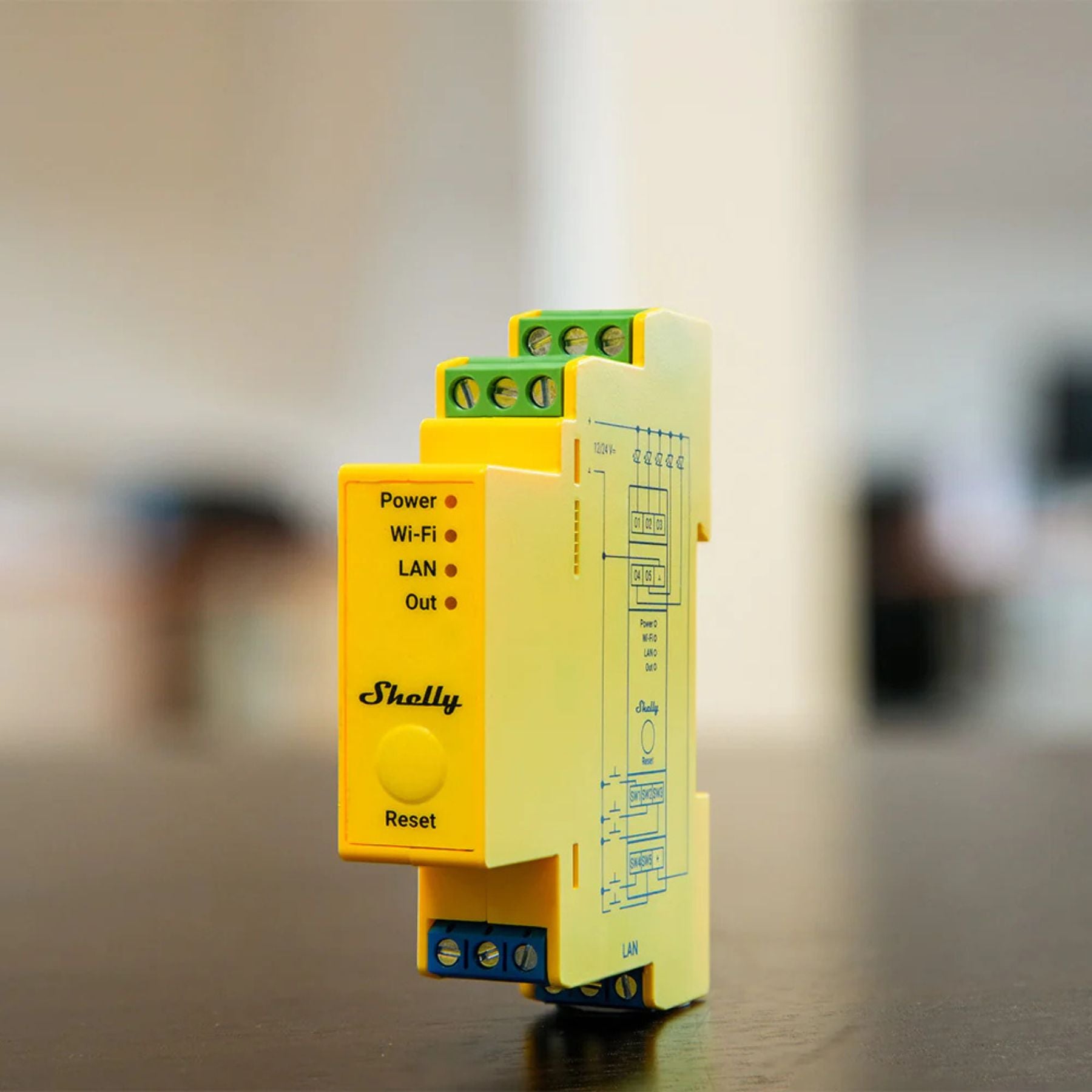

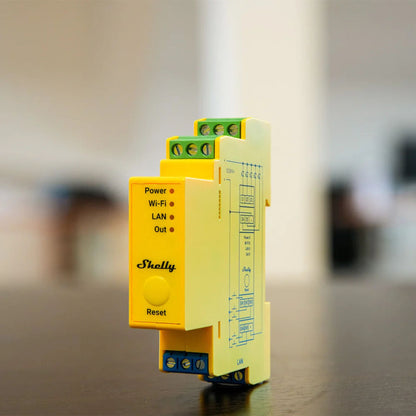

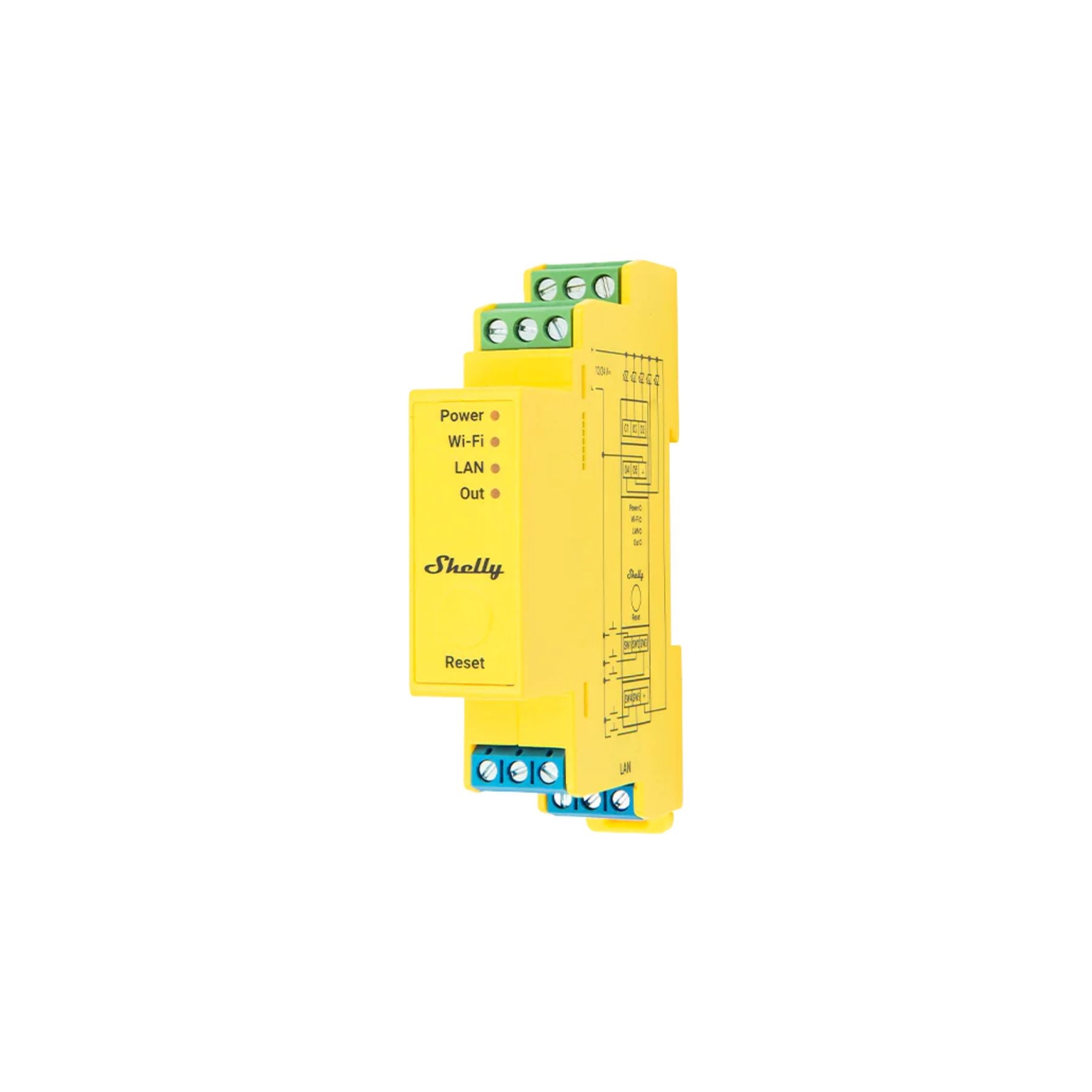

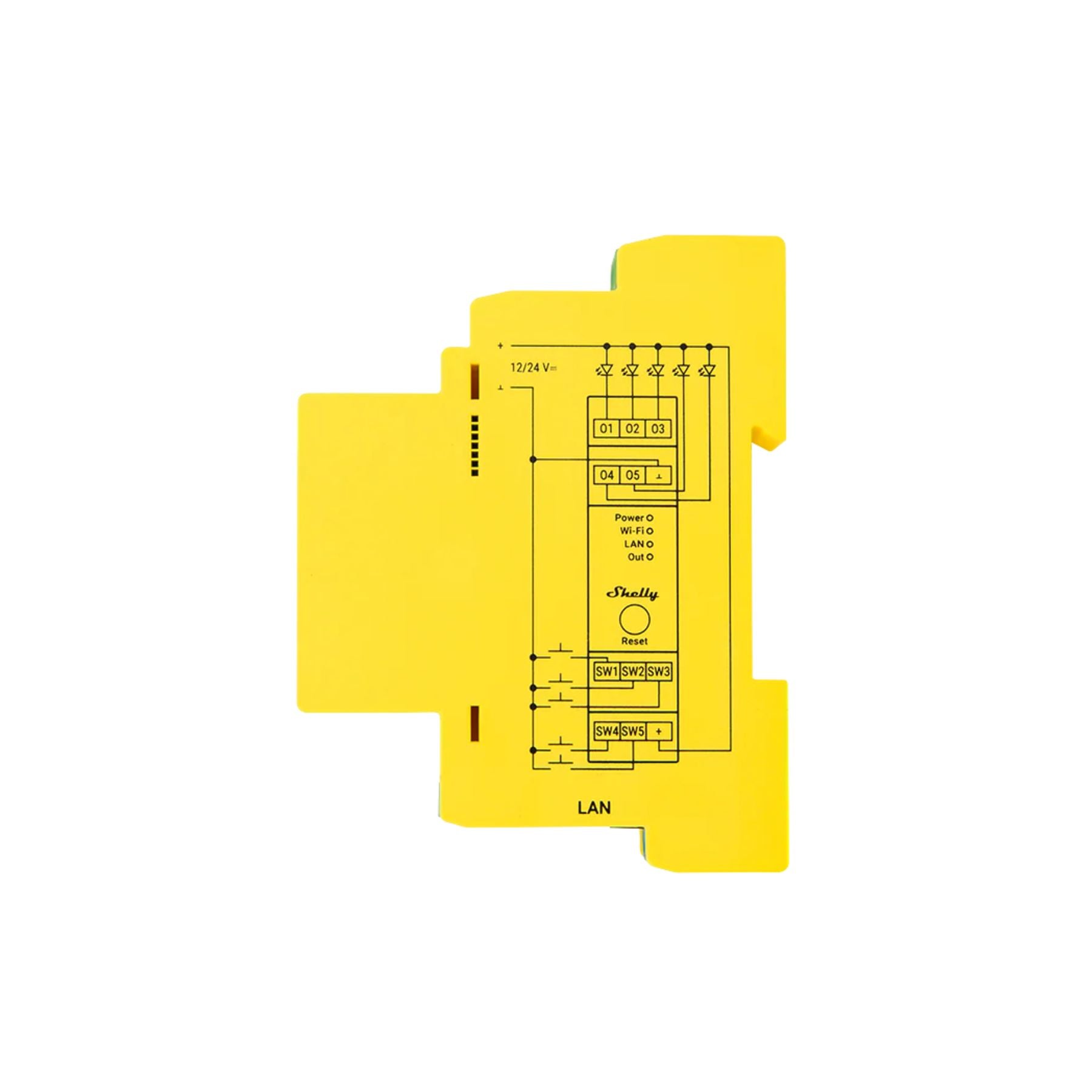

Shelly Pro RGBWW PM

Shelly Pro RGBWW PM — 5-Channel RGBWW WiFi LED Controller with Energy Meter

The Shelly Pro RGBWW PM is a 5-channel smart LED controller with Gen2 firmware and DIN rail mounting. It manages RGB, CCT, and custom combination LED strips with integrated power metering and dual WiFi + Ethernet connectivity. Compatible with Home Assistant, Alexa, and Google Home, without a hub or subscriptions.

Technical Specifications — Shelly Pro RGBWW PM

• Connectivity: WiFi 802.11 b/g/n (2.4 GHz) + Ethernet (RJ45) + Bluetooth BLE 4.2
• Channels: 5 independent outputs (R, G, B, WW, CW)
• Configurable profiles: Light ×5, RGB+CCT, RGB+2×Light, CCT×2, RGBW+Light
• Compatible LED strips: RGB, RGBW, RGB+CCT, CCT, monochromatic
• Energy metering: Yes — voltage, current, and real-time consumption
• Protections: Overcurrent, overvoltage, and overpower
• Extra features: WiFi repeater, BLE gateway, night mode, mJS scripting
• Mounting: DIN rail
• Certifications: CE, RoHS
• Protocols: MQTT, HTTP REST API, WebSockets, Webhooks, Scripting (mJS)

Main features

• 5 independently configurable LED output channels
• Integrated real-time electricity consumption metering
• Compatible with RGB, RGBW, CCT, and monochromatic LED strips
• Dual WiFi + Ethernet RJ45 connectivity for maximum reliability
• Functions as a WiFi repeater and BLE gateway simultaneously
• Night mode: reduced brightness at scheduled times
• mJS scripting for advanced automations
• No external hub required

Compatible with

• Home Assistant (local, no cloud)
• Amazon Alexa
• Google Home
• MQTT, HTTP REST API, Scripting mJS

Use cases

• Control of RGB LED lighting in living rooms, bedrooms, and commercial spaces
• Management of CCT LED strips for adjustable temperature lighting
• Professional lighting installations with consumption monitoring
• Home automation projects with Home Assistant and MQTT control
• Automated lighting scenes with voice control

Official Shelly distribution. Shipped from Spain. Official Shelly warranty.
