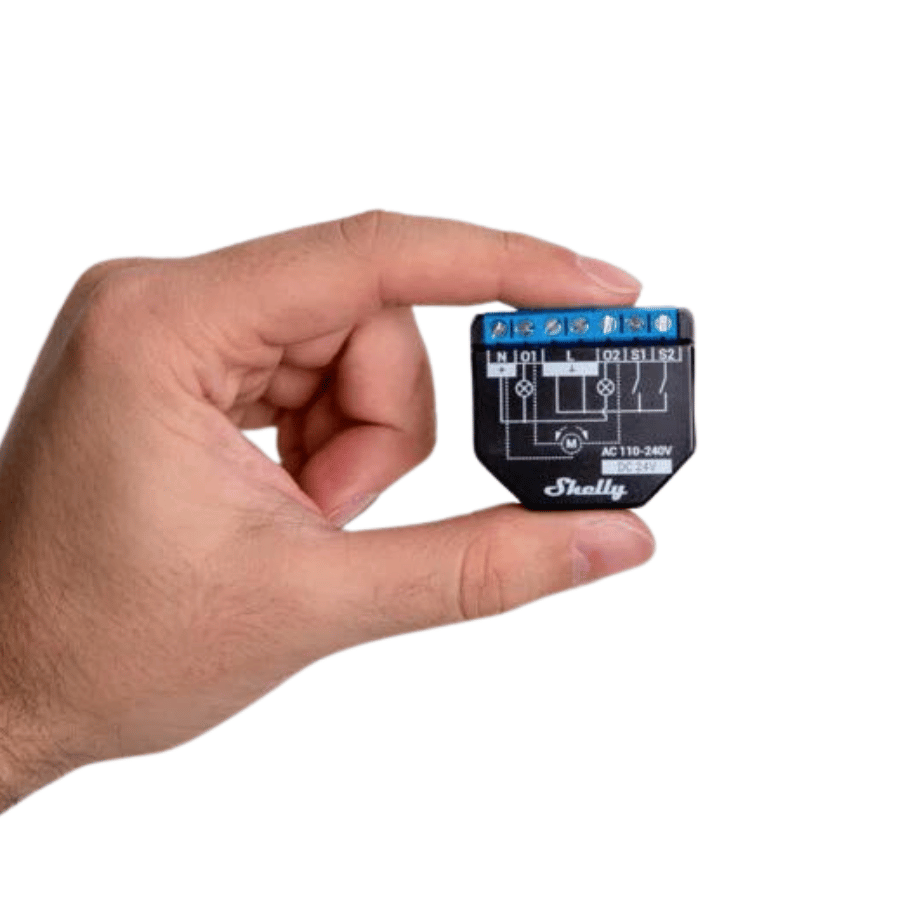

  • Shelly Plus 2PM dimensiones compactas 41×36×17 mm instalación

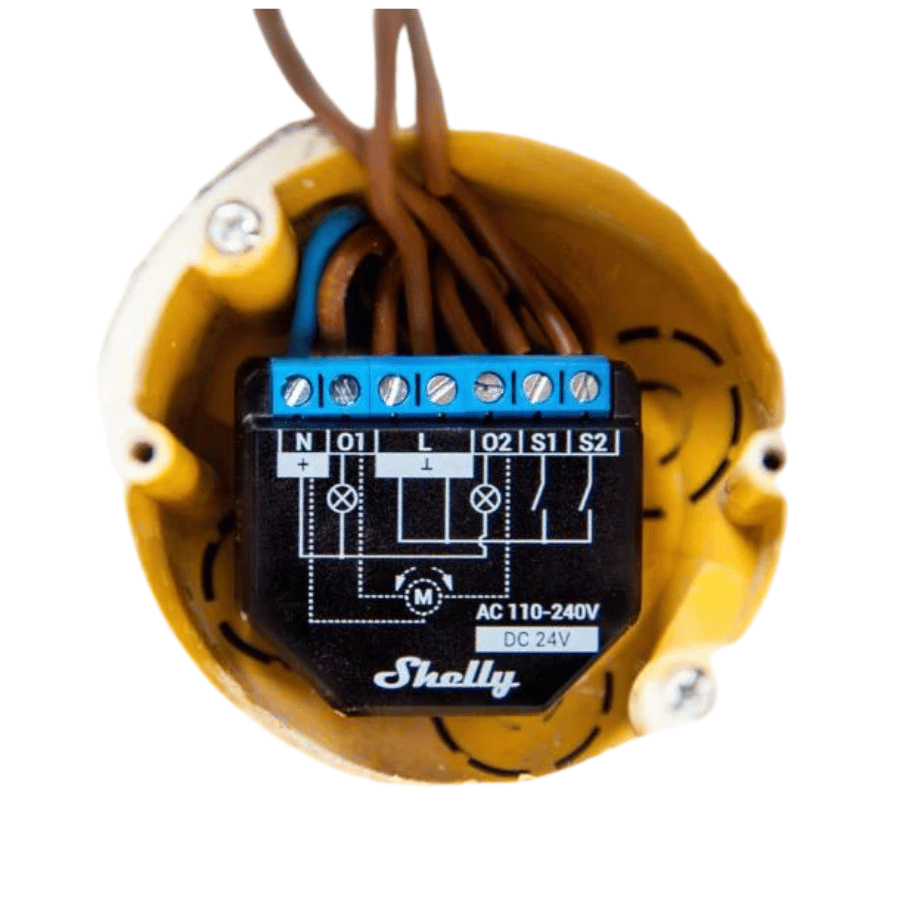

  • Shelly Plus 2PM instalado caja derivación doble canal

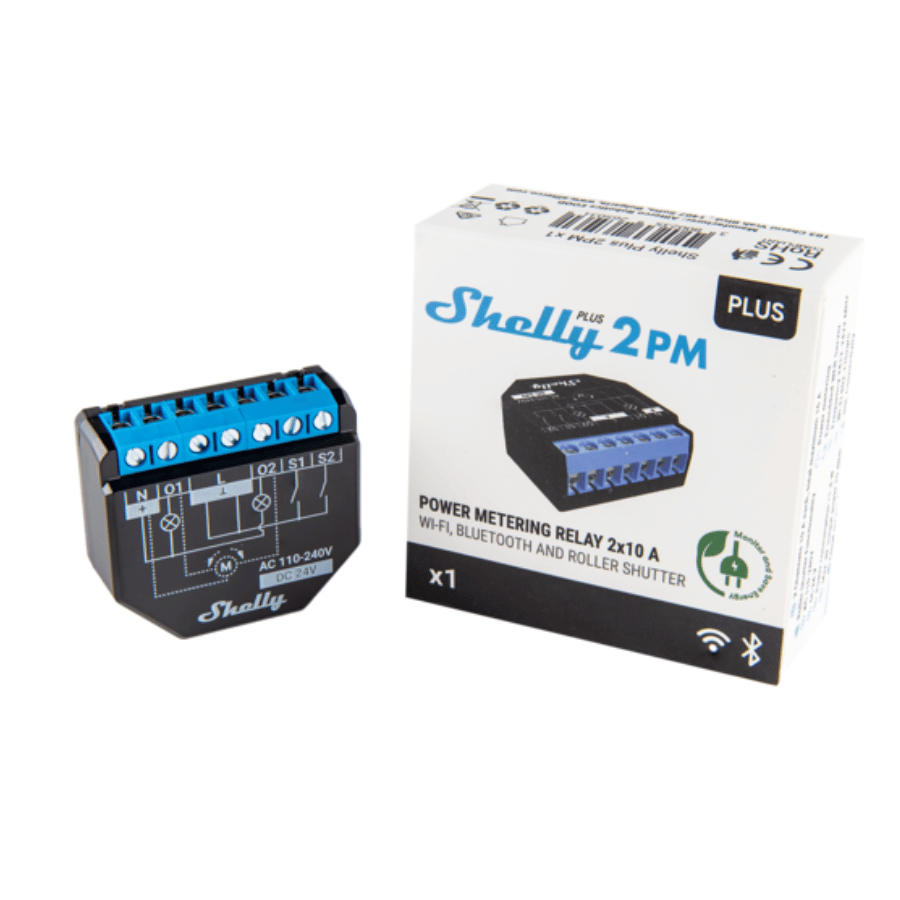

  • Caja embalaje Shelly Plus 2PM SNSW-002P16EU

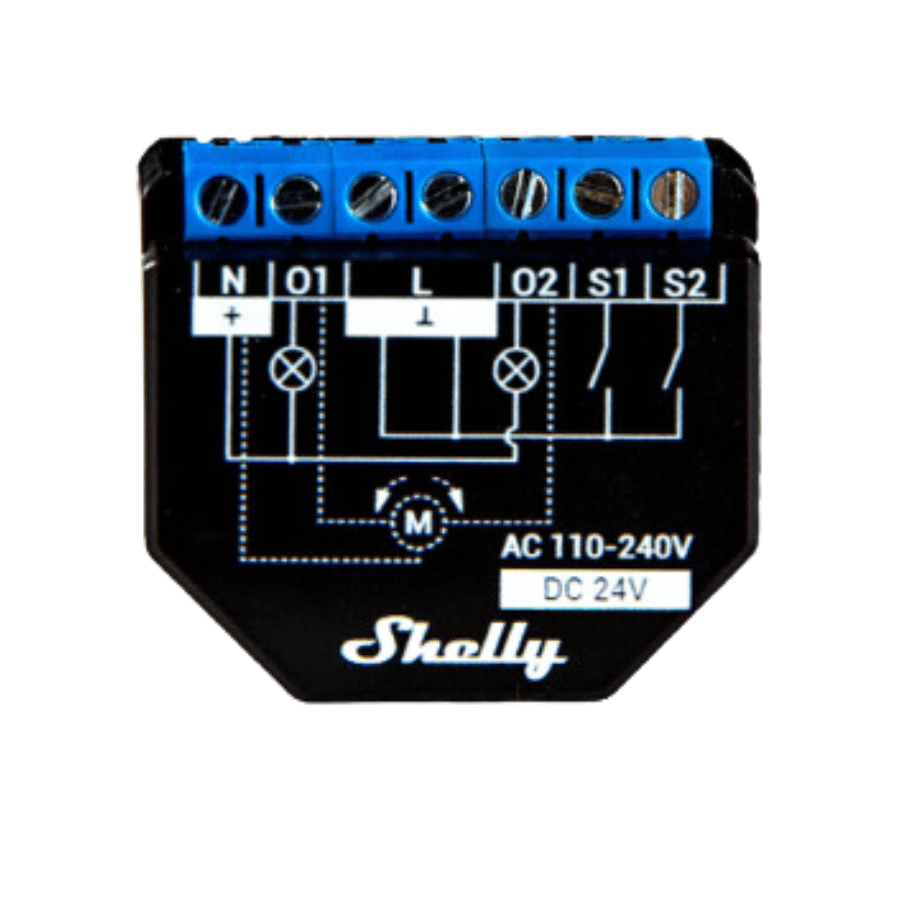

  • Shelly Plus 2PM vista 3D relé WiFi doble canal plus medidor
1 5

Shelly

Shelly Plus 2PM

Shelly Plus 2PM

€31,34
€31,34

Description

The Shelly Plus 2PM is a small, two-channel smart switch that offers power control and switch management, allowing remote control of electrical appliances via a mobile phone, tablet, PC, or home automation system. It works both independently via a local Wi-Fi network and through cloud-based home automation services.

Brief Product Description:

  • Connectivity and Remote Control: The Shelly Plus 2PM can be accessed, controlled, and monitored remotely from anywhere with internet connectivity, as long as it is connected to a Wi-Fi router and the internet.
  • Flexible Installation: This device can be easily installed in standard electrical junction boxes, behind outlets and light switches, or in other tight spaces, making it ideal for retrofits and adaptations to existing structures.
  • Built-in Web Interface: It has an embedded web interface that allows you to monitor and control the device, as well as adjust its settings in a simple and direct manner.

Main Applications:

  1. Residential: Ideal for smart homes seeking efficiency in energy management and device automation.
  2. Multiple Dwelling Units (MDU): Suitable for apartments, condominiums, and hotels, facilitating centralized device management and energy savings.
  3. Light Commercial: Used in small office buildings, retail stores, restaurants or gas stations for energy control and efficiency.
  4. Governmental/Municipal: Applications in government or municipal buildings for the control of lighting and other electrical devices.
  5. Universities and Colleges: Suitable for power management and device automation in educational environments.

Integrations:

The device seamlessly integrates with leading home automation platforms such as Google Home, Samsung SmartThings, and Amazon Alexa, enabling advanced control and the creation of automated, personalized scenarios.

Connectivity

  • RF band: 2400 - 2495 MHz
  • Max RF Power: <20 dBm
  • Wi-Fi Protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m indoors / 50 m outdoors (depending on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 10 m indoors / 30 m outdoors (depending on local conditions)

Links of interest

Shutter Mode:
Switch to Shutters
Details:


Wiring diagram.
User manual.

Web Interface Guide

See the Shelly Plus 2PM web interface guide:

Printed User Manual

Shelly Plus 2PM – Multilingual User and Safety Guide (PDF)

Certifications and Regulatory Compliance

EU Declaration of Conformity (Multilingual PDF)

Shelly Plus 2PM UK PSTI ACT Statement of compliance.pdf

Shelly Plus 2PM x2 UK PSTI ACT Statement of compliance.pdf

Installation Guides

View full details

Shelly Plus 2PM — Dual WiFi Relay with Meter and Shutter Control

The Shelly Plus 2PM (model SNSW-002P16EU) is a dual-channel WiFi relay with an integrated power meter and shutter mode. It controls two independent circuits or a shutter/awning motor from the Shelly app, by voice, or automatically. Compatible with Home Assistant locally. No hub or subscriptions.

Technical Specifications — Shelly Plus 2PM

  • Model: SNSW-002P16EU
  • Connectivity: WiFi 802.11 b/g/n (2.4 GHz) + Bluetooth BLE 4.2
  • Power Supply: 110–240V AC 50/60 Hz
  • Maximum Load: 16A / 3680W per channel
  • Channels: 2 independent with power meter
  • Shutter Mode: Yes — motor control with automatic limit detection
  • Operating Temperature: -20 to +40°C
  • Dimensions: 41 × 36 × 17 mm
  • Protocols: MQTT, HTTP REST API, WebSockets, Webhooks, Scripting (mJS)
  • Certifications: CE, RoHS

Main Features

  • Dual independent channels: control two lighting circuits or one shutter
  • Power meter on both channels: monitors kWh per channel in real time
  • Shutter mode: up/down control with automatic limit calibration
  • mJS scripting: advanced local automations (rain-triggered closing, light-triggered opening)
  • Ultra-compact (41×36×17mm): fits into standard flush-mounted boxes

Compatible with

  • Home Assistant (local, no cloud)
  • Amazon Alexa
  • Google Home
  • MQTT, HTTP REST API, mJS Scripting

Use cases

  • Automatic control of motorized blinds, awnings, and shades
  • Dual lighting circuit with independent power measurement
  • Automations by schedule, rain sensor, or sun position
  • Integration with Home Assistant for ambient and security scenes

Official Shelly distribution. Shipped from Spain. Official Shelly warranty.

Shelly Plus 2PM - Specifications

PHYSICAL
Size (HxWxD): 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight:
Mounting: Wall console
Screw terminals maximum torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
Shell material: Plastic
Color: Black
ENVIRONMENTAL
Ambient temperature: -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft
ELECTRICAL
Power supply: 110 - 240 VAC / 24 VDC ±10%
Power consumption: < 1.4 W
OUTPUT CIRCUITS RATINGS
Max switching voltage AC: 240 V
Max switching voltage DC: 30 V
Max switching current AC: 10 A (per channel), 16 A (total), 18 A (total peak)
Max switching current DC: 10 A
SENSORS, METERS
Temperature sensor: Forks
Voltmeter (AC) Forks
Ammeter (AC) Forks
RADIO
RF band: 2400 - 2495 MHz
Max. RF power: <20 dBm
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU: ESP32
Flash: 4 MB
FIRMWARE CAPABILITIES
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: mJS
MQTT: Forks
CoAP: No
