Shelly 1 Mini Gen3 Relay
Shelly 1 Mini Gen3 Relay
4.67 / 5.0
(3) 3 total reviews
Couldn't load pickup availability
Share
Description
Description
- Equipped with a new processor and larger flash memory - ESP Shelly.
- Improved durability of terminals.
- Supports up to 8 A at 240 VAC and 5 A at 30 VDC.
- Dry contacts (potential-free) - option for contactor control.
- Wi-Fi range extender and Bluetooth gateway.
- No hub required! Easy control via the Shelly Smart Control app, most platforms and protocols, and voice assistants. Use it with Alexa, Home Assistant, or your preferred home automation system.
- Supports scripts, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates.
Connectivity
Connectivity
Protocol: 802.11 b/g/n
RF band: 2401 - 2495 MHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Links of interest
Links of interest
The Shelly 1 Mini Gen3 is an advanced home automation control device designed to transform home automation, offering efficiency, convenience, and exceptional performance in an ultra-compact form factor. This smart switch redefines integration and control possibilities in electrical installations, making it ideal for both residential and commercial environments.
Main features of the Shelly 1 Mini Gen3 :
- Powerful and compact : Equipped with an advanced processor and large flash memory that guarantee a fast, reliable and stable response.
- Versatile Electrical Capacity : Supports loads up to 8 A at 240 VAC and 5 A at 30 VDC , allowing safe control of a variety of electrical devices. It also includes dry contacts for controlling contactors and other isolated circuits.
- Universal Compatibility : Wi-Fi and Bluetooth connectivity for quick and easy control from any mobile device, without the need for additional hubs.
- Range Extender and Gateway : Improve the coverage of your home automation network by connecting and controlling multiple devices with greater range.
- Support for multiple protocols : Integrates technologies such as MQTT , WebSocket , HTTPS and webhooks , allowing advanced customization and seamless integration with third-party systems.
- Advanced programming and automation : Allows you to create custom scripts to adapt to the specific needs of each installation.
Key benefits of the Shelly 1 Mini Gen3 :
- Efficient automation : Remotely control lights, appliances, and other electrical devices, optimizing energy consumption and improving comfort.
- Easy integration : Fits into any existing electrical installation and is easily controlled via the Shelly Smart Control app or platforms such as Alexa, Google Assistant, and Home Assistant.

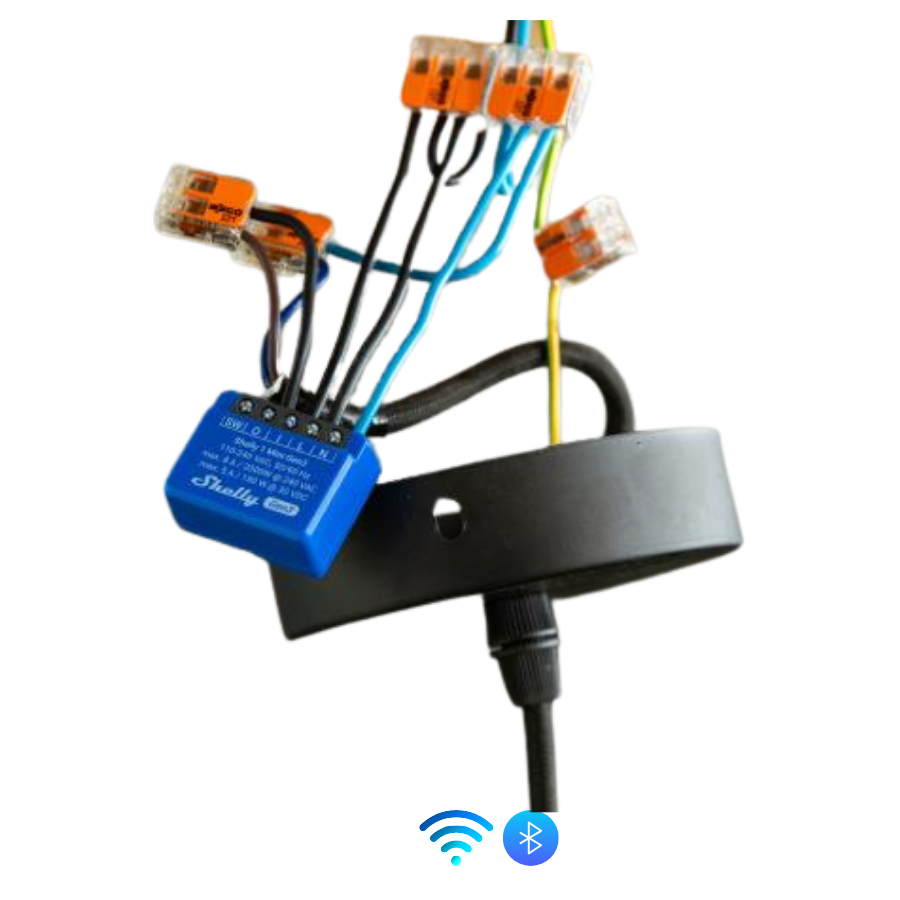

- Ultra-compact design : Its small size makes it easy to install in small spaces, such as standard junction boxes, without affecting the aesthetics of the environment.
Recommended applications:
- Automation of lights and appliances.
- Remote control of doors, blinds or irrigation systems.
- Management of electrical systems with dry contact, such as boilers or relays.
With the Shelly 1 Mini Gen3 , take home automation to the next level with a device that combines power, flexibility, and ease of use, adapting to any electrical system and offering absolute control from the palm of your hand.
Shelly 1 Mini Gen3 Relay - Specifications
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in |
| Weight: | 19 ±1 g / 0.65 ±0.04 oz |
| Mounting: | Wall box |
| Screw terminals maximum torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Blue |
| ENVIRONMENTAL | |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply: | 110 - 240 VAC |
| Relay: | Dry, NO contact, 1-pole, µ contact |
| External protection: | 10 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | < 1.2 W |
| Output circuit ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30 V |
| Max switching current AC: | 8A |
| Max switching current DC: | 5A |
| Max switching power AC: | 2000 W |
| Max switching power DC: | 150 W |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| MCU | |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| MQTT: | Forks |
| UDP: | Forks |
| Scripting: | Forks |
