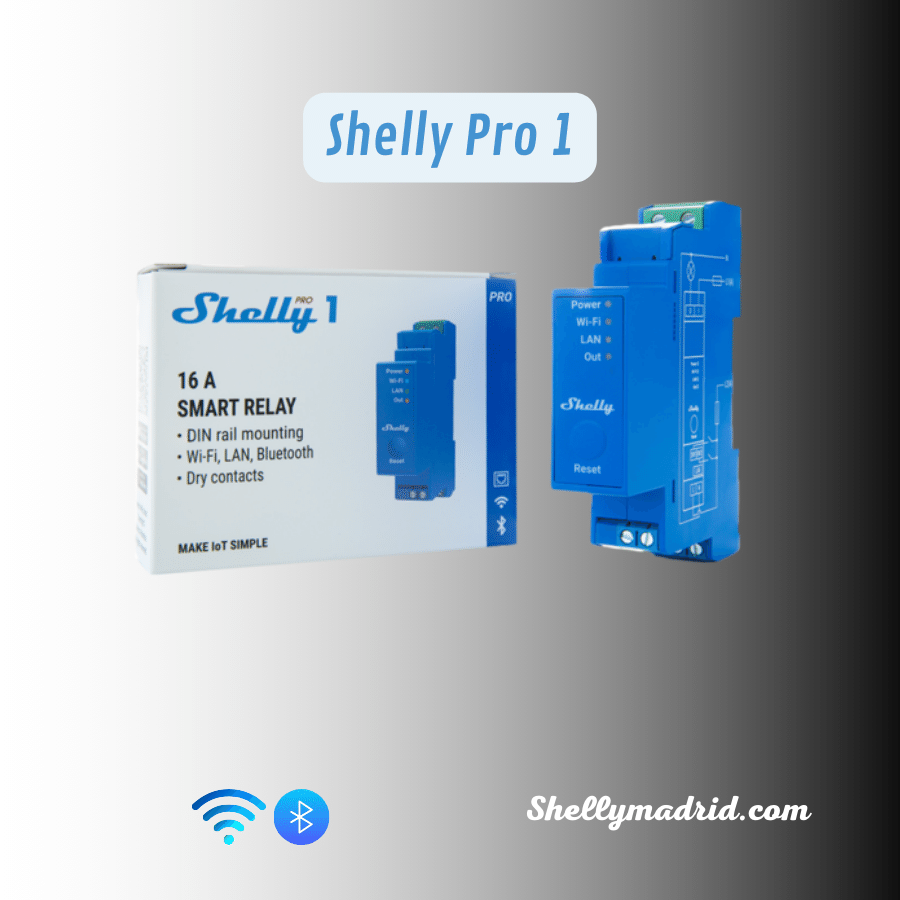

Caja de embalaje Shelly Pro 1 SNSW-001X16EU carril DIN

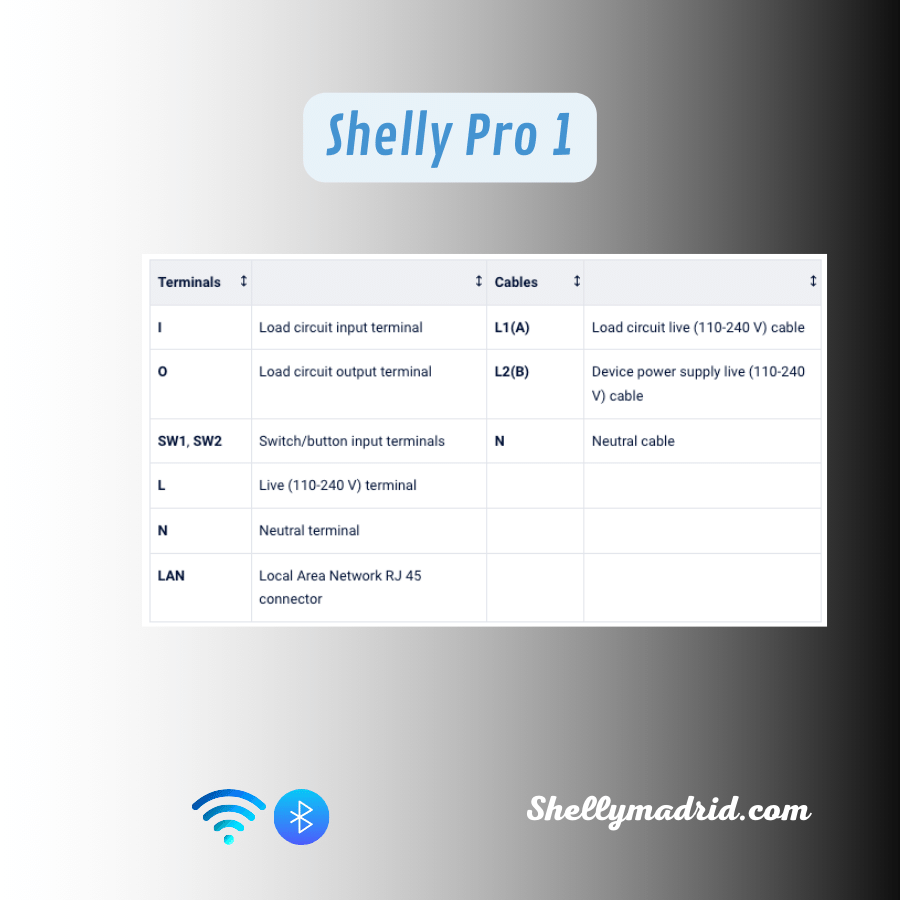

Etiqueta y leyenda Shelly Pro 1 especificaciones técnicas DIN

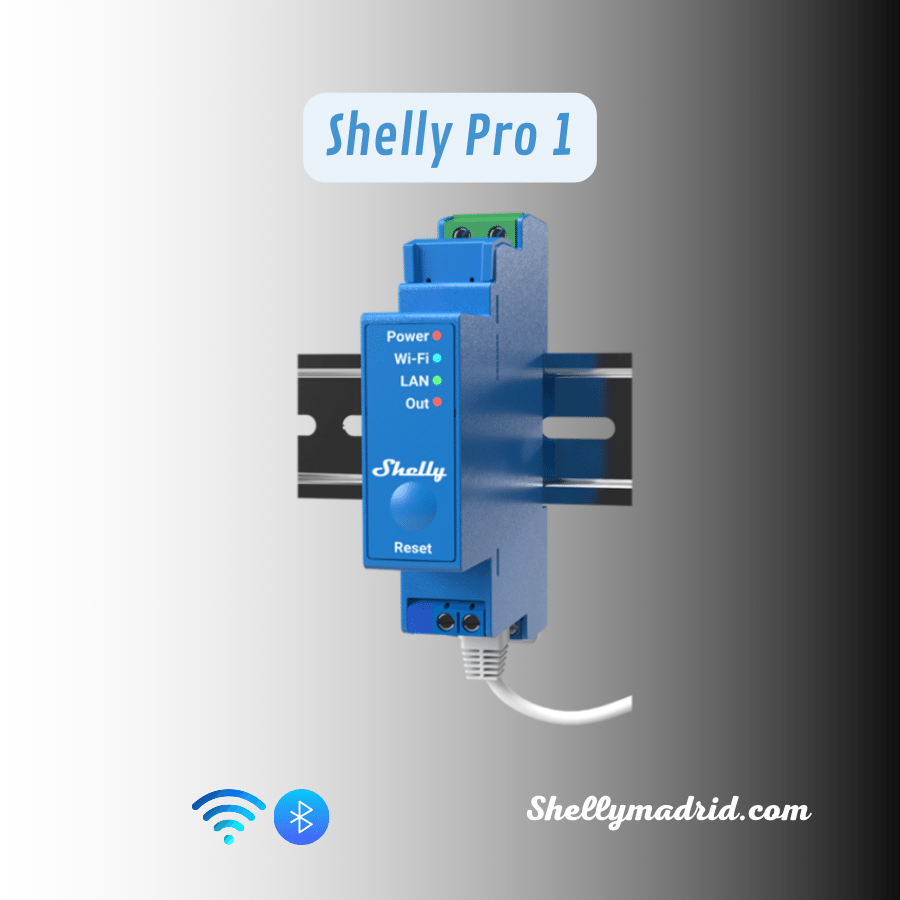

Shelly Pro 1 montado en carril DIN cuadro eléctrico

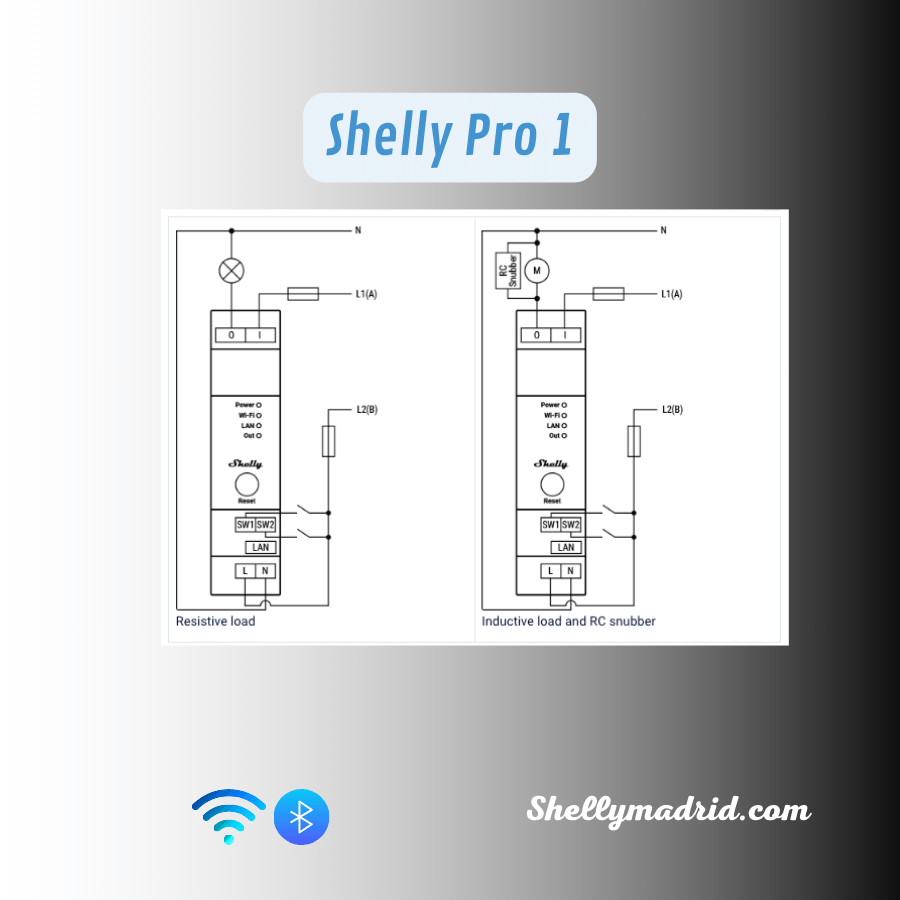

Shelly Pro 1 carga resistiva e inductiva diagrama 16A

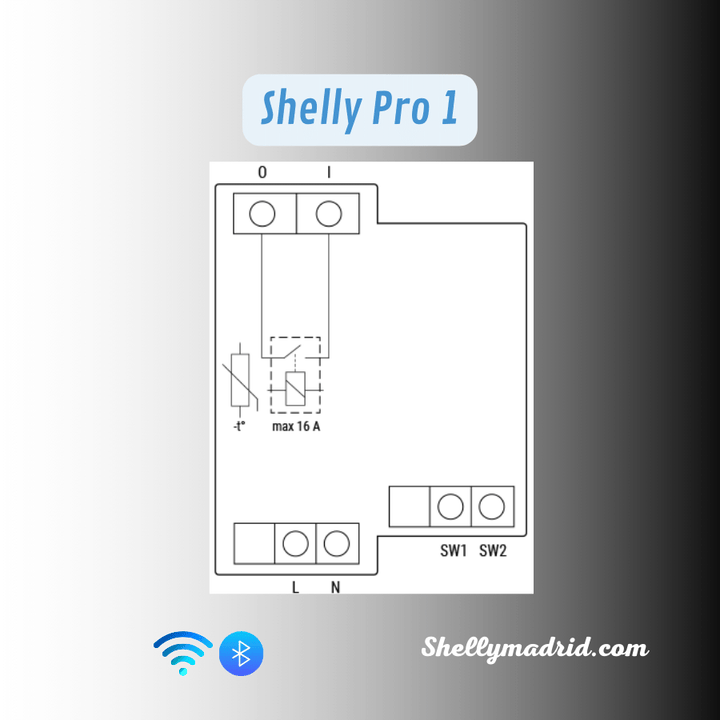

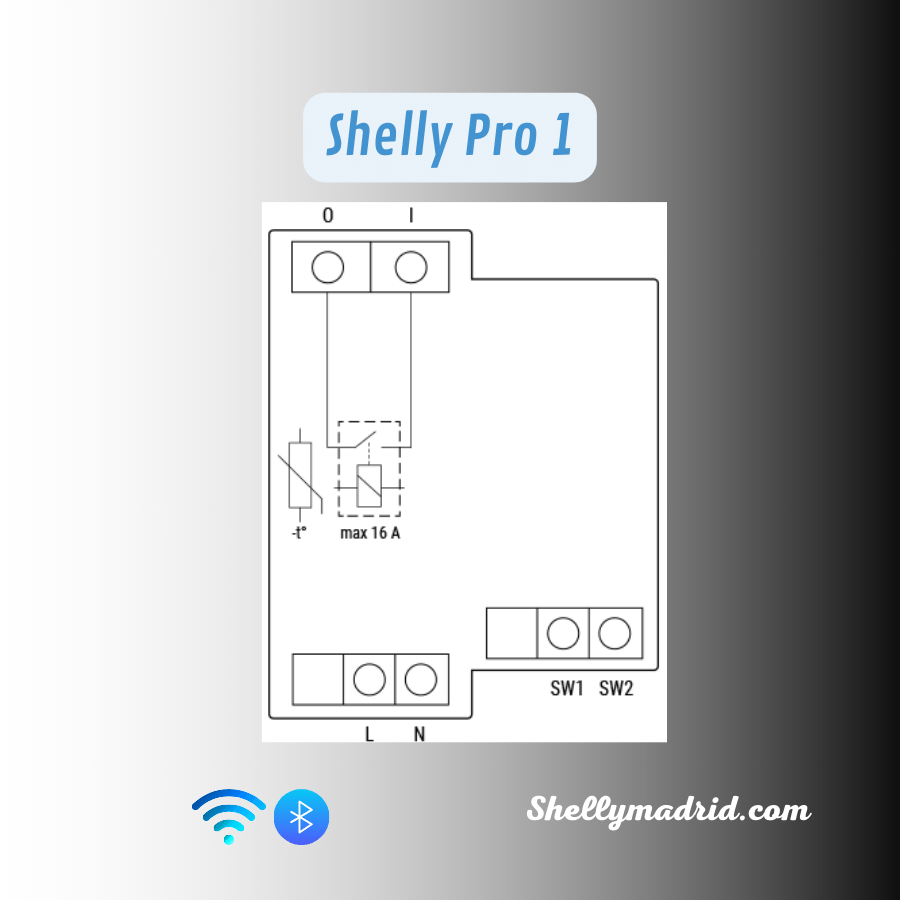

Esquemático instalación Shelly Pro 1 WiFi Ethernet contacto seco
Shelly Pro 1 con add-on expansión entradas temperatura

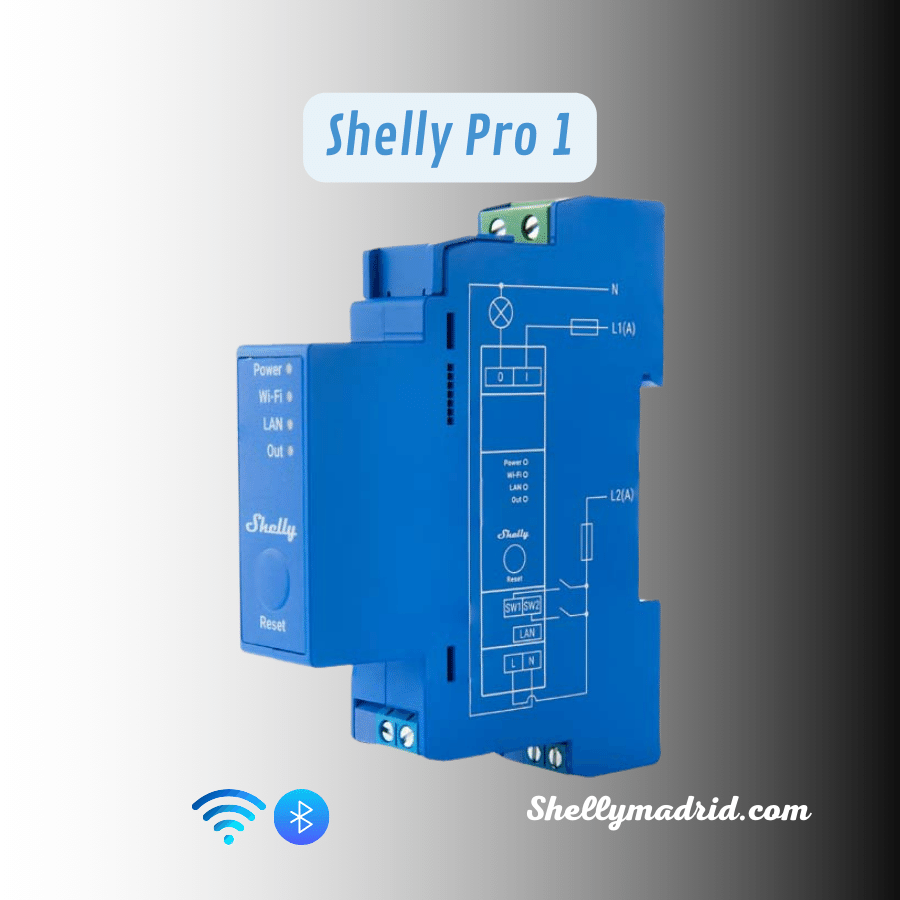

Shelly Pro 1 vista lateral carril DIN instalación profesional
Shelly Pro 1 relé DIN WiFi Ethernet 16A profesional
Caja de embalaje Shelly Pro 1 SNSW-001X16EU carril DIN
Etiqueta y leyenda Shelly Pro 1 especificaciones técnicas DIN
Shelly Pro 1 montado en carril DIN cuadro eléctrico
Shelly Pro 1 carga resistiva e inductiva diagrama 16A
Esquemático instalación Shelly Pro 1 WiFi Ethernet contacto seco
Shelly Pro 1 con add-on expansión entradas temperatura
Shelly Pro 1 vista lateral carril DIN instalación profesional

Shelly Pro 1

€59,94
/
Tax included. Shipping calculated at checkout.
  • Envío gratis a partir de 50 € · entrega en 24/48h
  • Garantía oficial 3 años · soporte técnico en español
  • Distribuidor oficial Shelly · PRO Partner
  • In stock, ready to ship
  • Backordered, shipping soon

Shelly Pro 1 — Professional 16A DIN WiFi + Ethernet Relay

The Shelly Pro 1 (model SNSW-001X16EU) is a professional 16A DIN rail relay with triple connectivity: WiFi 802.11b/g/n, RJ-45 Ethernet, and Bluetooth BLE 4.2. Dry contact (potential-free) compatible with high and low voltage circuits. TLS 1.2 security and advanced mJS scripting. No hub or subscriptions required.

  • Model: SNSW-001X16EU
  • Connectivity: WiFi + RJ-45 Ethernet + Bluetooth BLE 4.2
  • Power Supply: 110–240V AC 50/60 Hz
  • Max Load: 16A / 3840W (dry contact, potential-free)
  • Mounting: DIN Rail
  • Self-consumption: 0.3W
  • Security: TLS 1.2
  • Temperature: -20 to +40°C
  • Processor: ESP32-D0WDQ6, 8 MB Flash

Use Cases

  • Professional installations in residential, office, and commercial premises' DIN panels
  • Control of circuits with mandatory Ethernet connection for regulations or reliability
  • Integration with MQTT broker and enterprise home automation systems
  • Automation of light industrial machinery with 16A dry contacts

Compatible with Home Assistant (local), Amazon Alexa, Google Home, SmartThings, MQTT, and mJS scripting.

Conectividad

  • Wi-Fi RF band: 2401 - 2483 MHz
  • Max Wi-Fi RF power: <20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi range: Up to 30 m indoors / 50 m outdoors
  • Ethernet: RJ-45 (wired connection)
  • Bluetooth protocol: BLE 4.2
  • Bluetooth range: Up to 10 m indoors / 30 m outdoors

Especificaciones técnicas

PHYSICAL
Size (HxWxD): 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight: 63 g / 2.22 oz.
Mounting: DIN rail
Screw terminals maximum torque: 0.4 Nm / 3.54 lbin
Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
Shell material: Plastic
Color: Blue
ENVIRONMENTAL
Ambient temperature: -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft
ELECTRICAL
Power supply voltage AC: 110 - 240 V
Power supply voltage DC: N/A
Power consumption: < 3 W
Neutral not needed: No
OUTPUT CIRCUITS RATINGS
Max switching voltage AC: 240 V
Max switching voltage DC: N/A
Max switching current AC: 16 A
Max switching current DC: N/A
SENSORS, METERS
Temperature sensor: Forks
RADIO
RF band: 2400 - 2495 MHz
Max. RF power: <20 dBm
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU: ESP32-D0WDQ6
Flash: 8 MB
FIRMWARE CAPABILITIES
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: mJS
MQTT: Forks
CoAP: No

Vídeo

Documentación y recursos

Knowledge Base

Web Interface Guide

API Documentation

Certifications & Compliance

Installation Guides

Envío en 24/48h a España peninsular y Baleares (también Portugal continental). Envío gratis a partir de 50 €. Garantía legal de 3 años. Devoluciones en 14 días. Factura con IVA y soporte técnico real en español.
