Shelly Wall Display XL Black
The Shelly Wall Display XL in premium black finish is a large-format home automation control panel with a 10.1" touchscreen, Android 11, integrated 5A relay, speakers, and dual-band Wi-Fi 6. It centralizes control of lighting, climate, scenes, and power consumption with a sophisticated design.
Key Features:
Display: 10.1" capacitive color (1280 × 752 px) | Android 11
Integrated relay: 5A | Speakers: 2 × 2W
Buttons: 4 configurable + 1 screen on/off
Sensors: Light and proximity | Power measurement: Yes
Use cases: home automation control center, lighting and climate management, energy monitoring, professional and corporate installations
Conectividad
- Wi-Fi Protocol: Wi-Fi 6 (802.11 ax) — 2.4 GHz + 5 GHz
- Bluetooth: BLE 5.4
- BLU Compatibility: Bluetooth Gateway for Shelly BLU devices
Especificaciones técnicas
Shelly Wall Display XL: 10.1" Smart Control Panel
The Shelly Wall Display XL is a smart home control panel featuring a 10.1-inch (G+FF) capacitive color touch screen and load circuit switching functionality. This device centralizes your smart home management, offering easy navigation and a fully customizable home screen.
In addition to its integrated relay for direct appliance control, the panel includes two 2W speakers, integrated light sensors, and the ability to monitor the energy consumption of all devices in the room through your Shelly Smart Control account. Its physical interface includes a dedicated button to turn the screen on/off and four fully configurable side buttons to control volume, execute scenes, or manage specific devices.
Key Use Cases

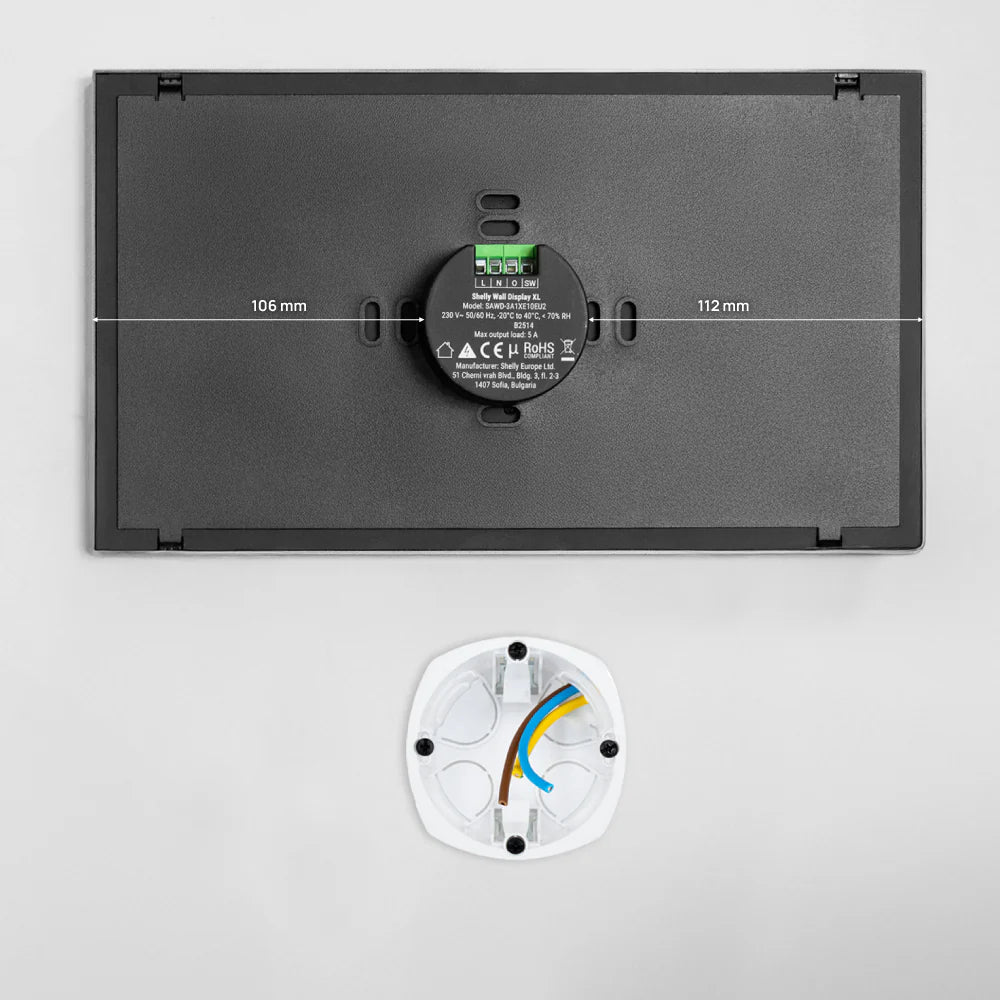

- Efficient and centralized installation: The device is designed to be installed using standard electrical wall boxes, replacing traditional switches.
- Appliance and climate control: It allows for remote control and automation of appliances such as lights and fans, as well as adjusting HVAC systems, dehumidifiers, and humidifiers based on temperature and humidity conditions.
- Advanced audio integration: You can connect a Bluetooth or Sonos speaker to the panel to enhance audio control, allowing music, notifications, and alarms to be streamed with better sound coverage.
- Prevention and security alerts: The panel can send notifications if extreme temperature or humidity thresholds are reached to prevent pipes from freezing or mold growth, and can detect unusual changes that could indicate a risk of fire or flood.
- Energy efficiency: Take advantage of its power metering function to identify the most energy-consuming appliances and make decisions to improve your home's overall efficiency.
Technical Specifications
| Feature | Details |
|---|---|
| Display | 10.1” color touch (5-point capacitive), 1280x752 px resolution |
| Power Supply (AC) | 100 - 240 V~ 50/60Hz |
| USB Power Supply | Type-C (5 V⎓ / 3 A) |
| Power Consumption | < 15 W |
| Integrated Audio | 2x 2 W speakers |
| Physical Interface | 1 screen on/off button and 4 fully customizable buttons |
| Dimensions (H x W x D) | 155.8 x 272.5 x 38.3 mm |
| Weight | 920 g |
