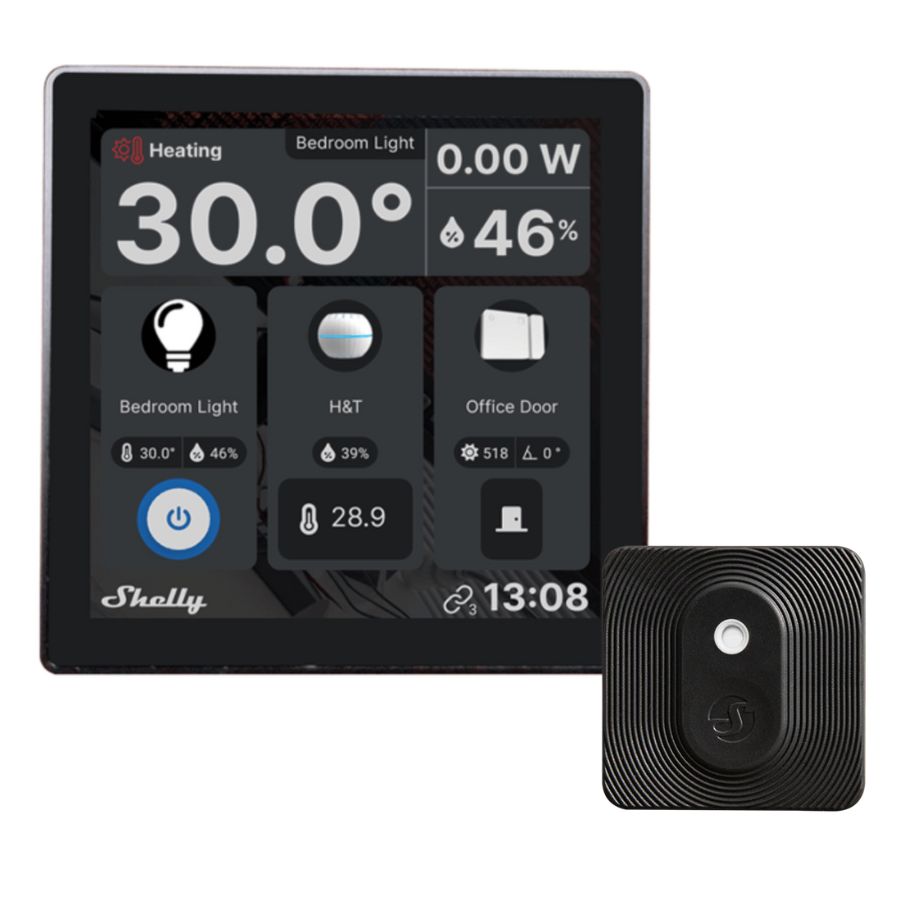

HeShelly Wall DisplayIt's a smart home control panel with a 4-inch touchscreen that simplifies the management and monitoring of all your Shelly devices. It's the ideal addition to any modern home, offering seamless integration into any interior thanks to its minimalist design and customizable home screen.
Main features of the Shelly Wall Display:
- 4-inch sensitive touch screen:Intuitive interface with a customizable home screen that lets you control devices with just a tap.
- Device control via integrated 5A relay:Perfect for controlling lighting and other appliances, requires a neutral connection.
- Integrated sensors:Monitors temperature, humidity and ambient light (LUX) for efficient indoor climate automation.
- Room thermostat:It works like a smart thermostat, adjusting your heating or air conditioning to your preferences.
- Monitoring energy consumption:View the energy consumption of all connected devices in the selected room.
- Custom scenes and schedules:Set scenes and schedules to automate daily tasks and improve energy efficiency.
Main applications:
- Ideal for residences, multi-dwelling units such as apartments and hotels, small commercial spaces, government and educational facilities.
Connectivity and security:
- Hassle-free connection via Wi-Fi and Bluetooth, without the need for a central hub.
- Supports resistive load types (such as incandescent bulbs and heaters), capacitive loads (capacitor banks, electronic equipment), and inductive loads with RC Snubber (LED drivers, transformers, fans).
Advanced User Interface:
- Fully customize your home screen for quick access to up to six important devices, with touch controls that make it easy to turn devices on or off and monitor your environment in real time.
This comprehensive solution not only modernizes your light switches, but also transforms how you interact with your home environment, making it smarter, more efficient, and tailored to your daily needs.
Conectividad
- Wi-Fi
- Bluetooth
Especificaciones técnicas
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 85x85x30mm/3.35x3.35x1.18in |
| Mounting: | Wall box |
| Shell material: | Plastic |
| Color: | Black / White |
| ENVIRONMENTAL | |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply: | 230 VAC, 50/60Hz |
| External protection: | 5 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | < 1.0 W |
| OUTPUT CIRCUITS RATINGS | |
| Max switching current AC: | 5A |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| SENSORS, METERS | |
| Internal-temperature sensor: | Forks |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 2 URLs per hook |
| MQTT: | Forks |
| Scripting: | Forks |
