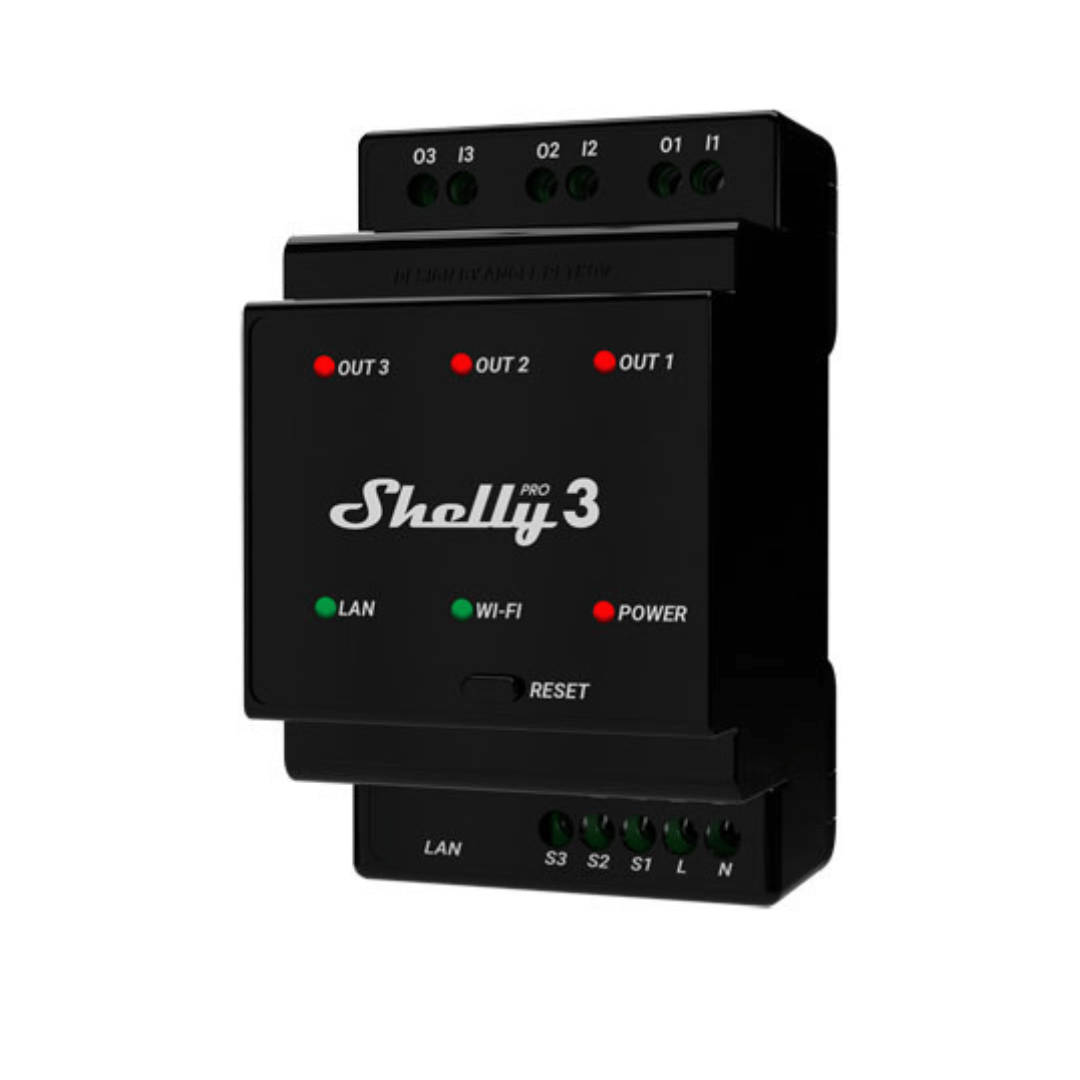

Have you ever wondered whether you can use the same Shelly device to control a 230V AC light and a 12V DC blind motor? With the Shelly Pro 3 V1, the answer is a resounding YES!
One of the most powerful features of Shelly Pro devices (and one that often raises questions) is the capability of their dry-contact relays, also known as "potential-free contacts". This functionality is key to incredible flexibility in your automation.
What is a Dry-Contact Relay?
Imagine a traditional light switch. It simply opens or closes a circuit to turn something on or off. A dry-contact relay works exactly like that: it's an electrical switch that isn't internally connected to the Shelly device's own power supply.
This means that:
- It's independent: The current (AC or DC) and voltage you pass through the relay can be completely different from the current and voltage that power the Shelly Pro 3 (which is always AC, from 110V to 240V).
- It isolates circuits: It lets a single Shelly device control equipment operating on different power sources.
Versatility in Action: O1 for DC and O2 for AC
With your Shelly Pro 3 V1, you can connect and control:
- A direct current (DC) line, for example, a 24V DC garage motor, to the O1 output.
- An alternating current (AC) line, like your garden lighting system at 230V AC, to the O2 output.
- And you'd still have the O3 output for yet another device, whether AC or DC, or even a third line with a different voltage!
Each relay of the Shelly Pro 3 acts as an independent switch, offering you maximum flexibility in your home-automation projects.
Crucial Limits to Remember
Although the relays are very versatile, it's vital to respect their operating limits to ensure safety and correct operation:
-
For Direct Current (DC):
- Maximum voltage: 30 V DC
- Maximum current: 16 A per channel
-
For Alternating Current (AC):
- Maximum voltage: 240 V AC
- Maximum current: 16 A per channel
Always make sure the load you connect to each relay doesn't exceed these values to avoid damage to the device or the installation.
Why is This So Useful?
This ability to handle different types of current and voltage in a single device is immensely valuable for:
- Simplifying installations: It reduces the need for multiple controllers or auxiliary relays.
- Optimizing space: A single Shelly Pro 3 can do the job of several devices.
- Planning flexibility: It lets you integrate devices of different types and electrical requirements into a single automation system.
So, if you're thinking of automating a ceiling fan (AC) while also controlling the irrigation system (which could be DC), your Shelly Pro 3 V1 is the perfect tool for the job.
