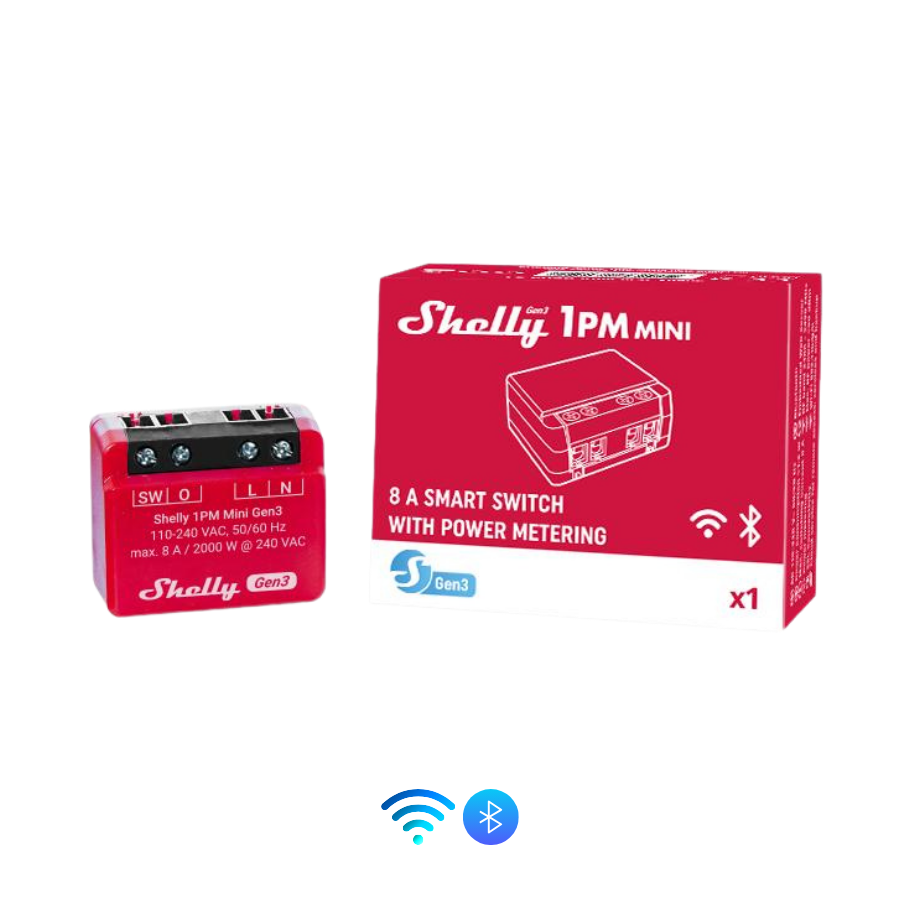

Shelly 1PM Mini Gen3 — Ultra-Compact WiFi Relay with Meter

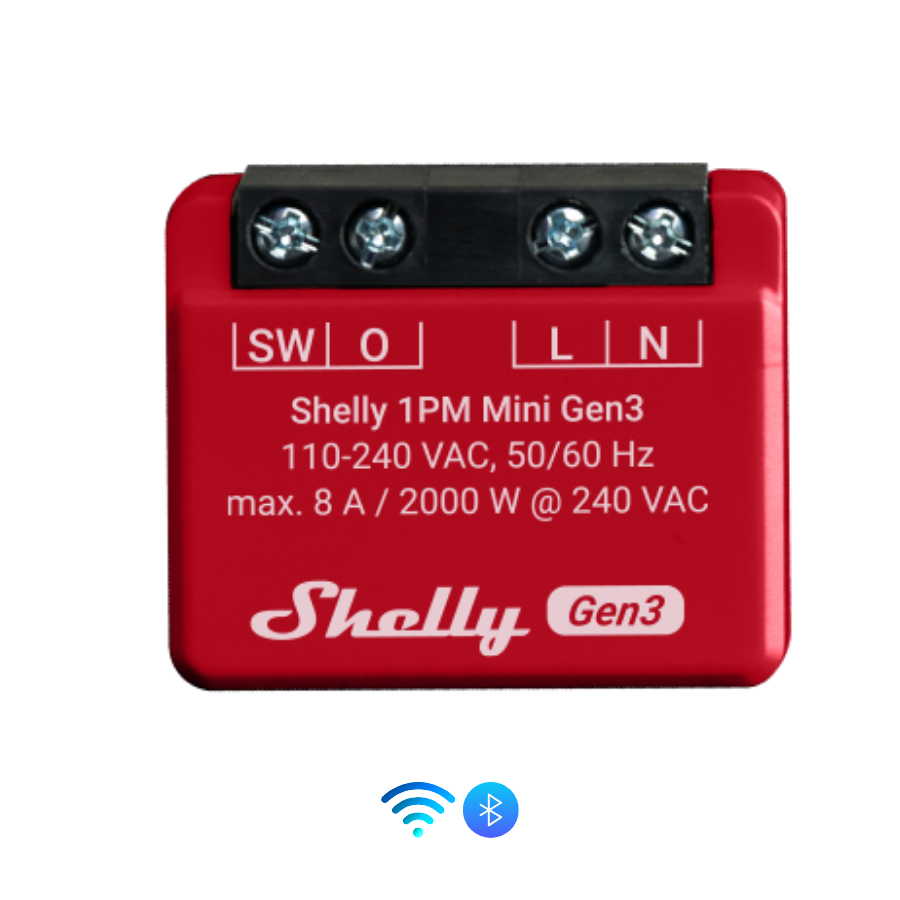

The Shelly 1PM Mini Gen3 (model S3SW-001P8EU) is the most compact WiFi relay in the Gen3 range, with an integrated power meter. It controls and monitors circuits up to 8A/1840W. It acts as a Bluetooth gateway for Shelly BLU and extends the WiFi network. No hub or subscriptions required.
- Model: S3SW-001P8EU
- Power Supply: 110–240V AC 50/60 Hz
- Max Load: 8A / 1840W with power metering

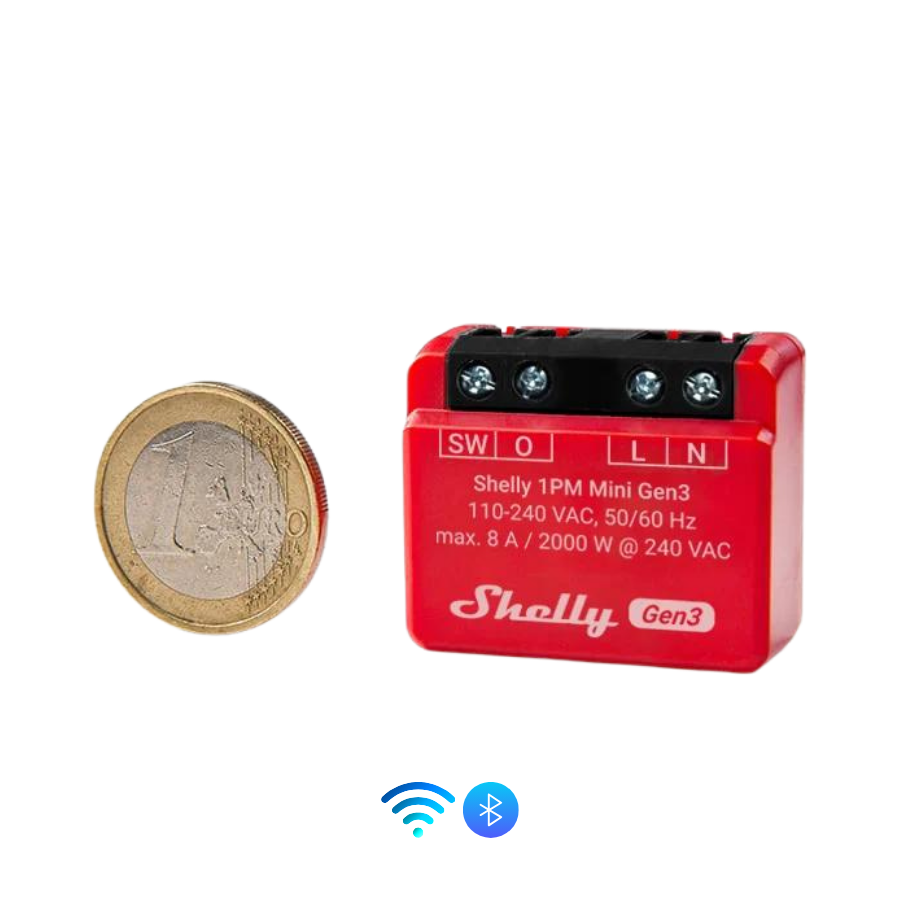

- Dimensions: 29 × 29 × 15 mm
- Temperature: -20 to +40°C
- Functions: BLU gateway, WiFi extender, mJS scripting
Use Cases

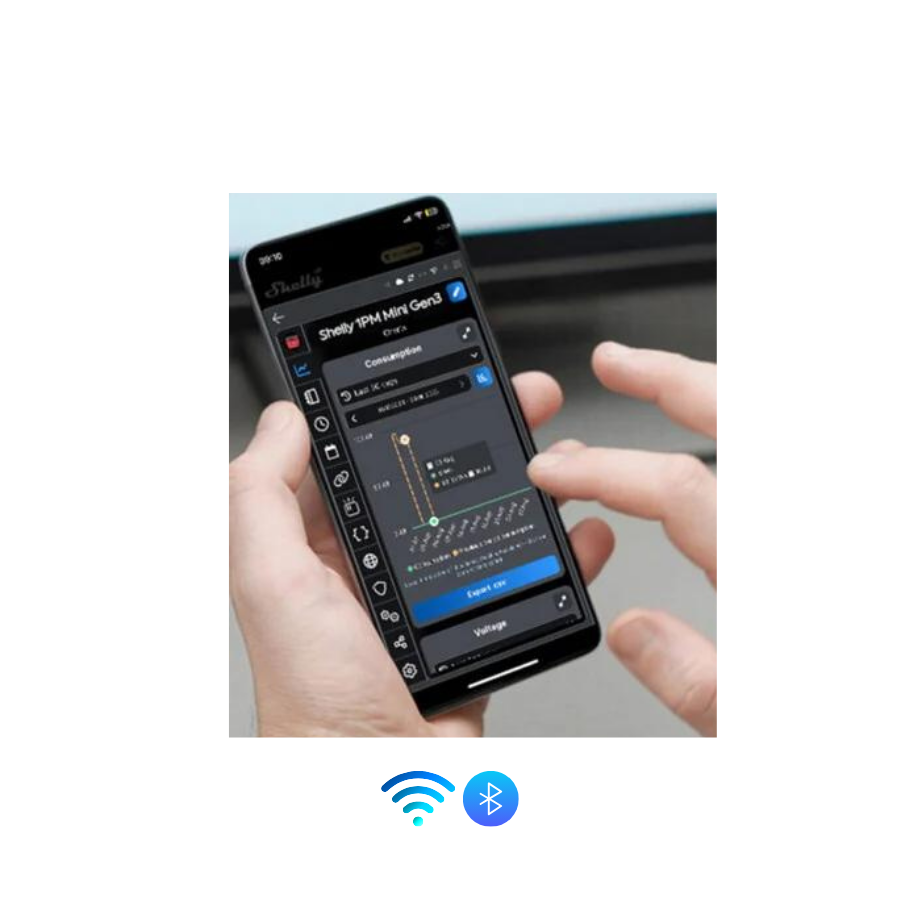

- Monitor appliance consumption in real-time

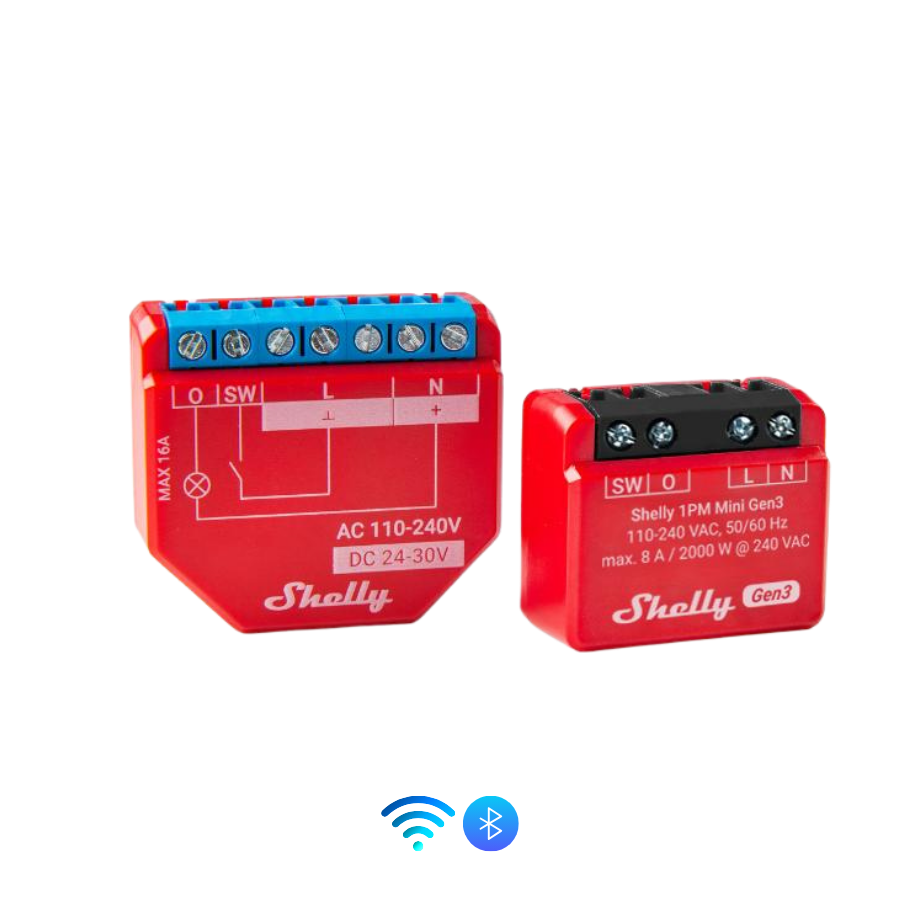

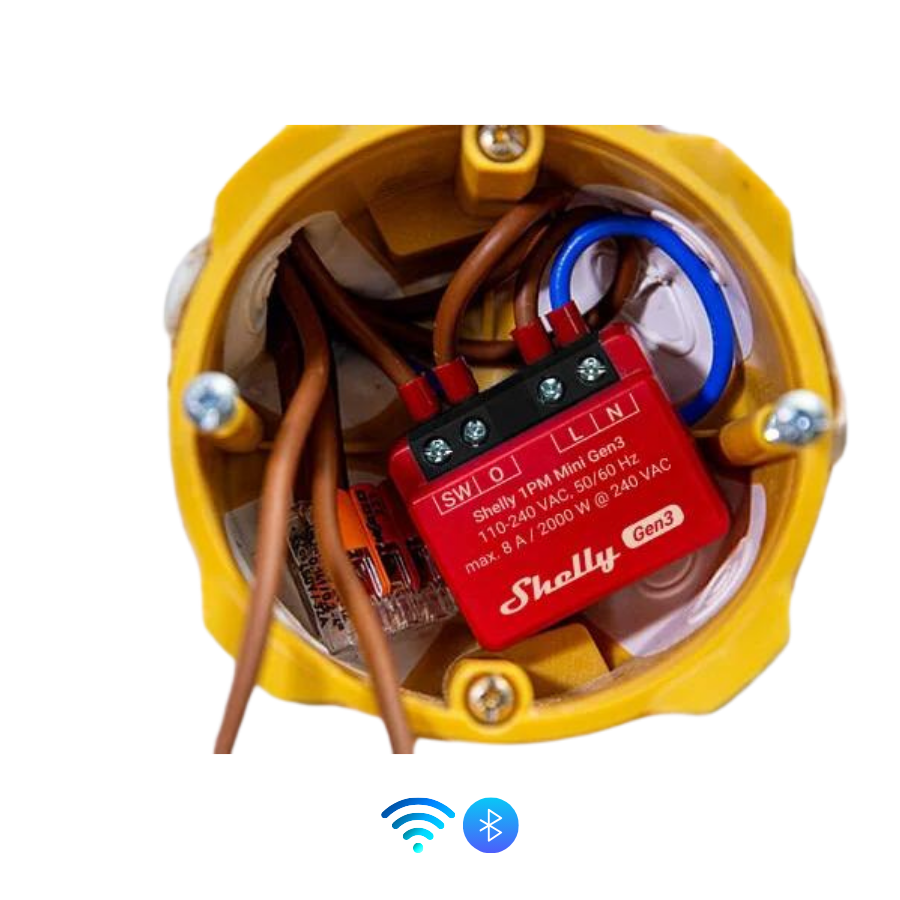

- Install in very small boxes where a standard relay won't fit
- BLE hub for Shelly BLU sensors with Home Assistant
Compatible with Home Assistant (local), Amazon Alexa, Google Home, MQTT, and mJS scripting.
Conectividad
- RF Band: 2400 - 2500 MHz
- Max RF Power: <20 dBm
- Wi-Fi Protocol: 802.11 b/g/n
- Wi-Fi Range: Up to 30 m indoors / 50 m outdoors
- Bluetooth Protocol: BLE 4.2
- Bluetooth Range: Up to 10 m indoors / 30 m outdoors
Especificaciones técnicas
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 29x34x16 ±0.5 mm / 1.11x1.34x0.63 ±0.02 in |
| Weight: | 18 ±1 g / 0.63 ±0.04 oz |
| Mounting: | Wall box |
| Screw terminals maximum torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Grid |
| ENVIRONMENTAL | |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply: | 110 - 240 VAC / 24 - 30 VDC |
| Relay: | NO contact, 1-pole, µ contact |
| External protection: | 10 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | <1.2 W |
| OUTPUT CIRCUITS RATINGS | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 8A |
| Max switching current DC: | N/A |
| Max switching power AC: | 2000 W |
| Power measurement: | Forks |
| Voltage protection / Cutoff: | Forks |
| Current protection / Cutoff: | Forks |
| Max power protection / Cutoff: | Forks |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| MCU | |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| MQTT: | Forks |
| UPD: | Forks |
| Scripting: | Forks |
