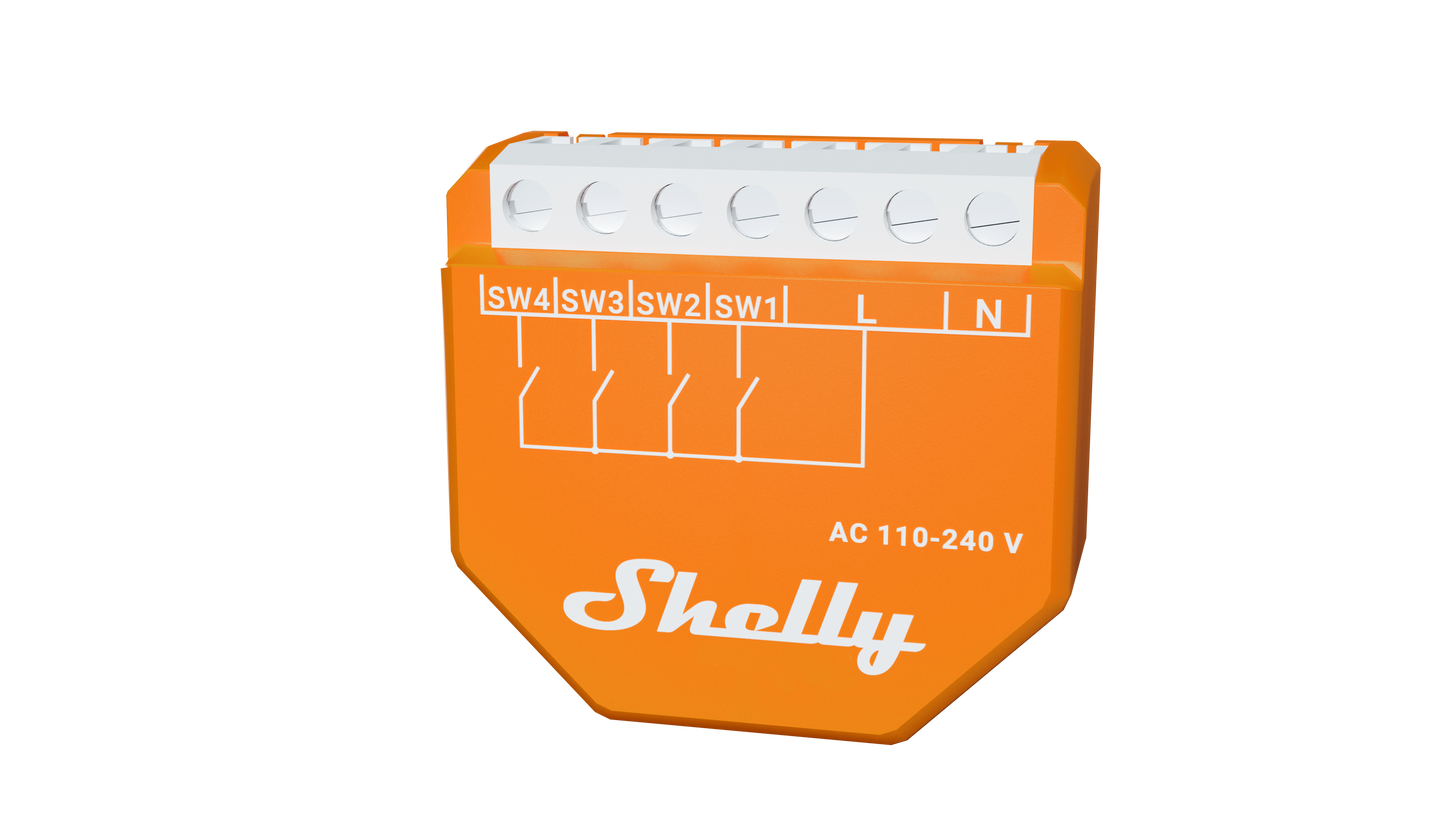

Shelly Wave i4 AC - Long-Range Z-Wave Smart Scene Controller

Take full control of your smart home with the Shelly Wave i4 EU LR. This innovative device is a 4-digital input reader module designed specifically to control other devices within your Z-Wave network. Lacking internal relays, its primary function is to read the pulses from your physical switches or buttons for manual activation of scenes, synchronized actions, or complex home automation events.

Hidden behind any standard switch, it allows you to maintain your home's aesthetics while completely transforming its intelligence.

Benefits and Key Features

• Z-Wave Long Range (LR) Technology: Maintain an ultra-stable connection over incredible distances. It supports long-range topology, reaching up to 1000 meters outdoors (with line of sight) and 80 meters indoors.
• High-Capacity Multiclick Control: Supports advanced push commands. By registering single-click, double-click, sustained, and release combinations on its 4 inputs, it can activate up to 16 different actions and scenes from the same location.
• Z-Wave 800 Series: Equipped with the latest S800 microprocessor, it ensures ultra-fast processing and over-the-air (OTA) firmware updates.
• Extremely Low Consumption: Designed for maximum energy efficiency, this module consumes less than 0.2 W.
• Smart and Secure Configuration: Automatic installation using SmartStart technology and full protection of your data thanks to the superior Security 2 (S2) Authenticated encryption protocol.
• Maximum Compatibility: Works perfectly with over 4000 certified Z-Wave devices and has official "Works with Home Assistant" certification.

Use Cases: What can you do with a Wave i4 LR?

• The "Away Mode" button: Configure one of the buttons at your home's entrance so that when pressed, all lights automatically turn off and blinds close.
• Central Scene Control: Assign a double switch in the living room: one click to activate the "Cinema" scene (dim lights) and two clicks for the "Reading" scene (bright light).

Technical Specifications

• Power Supply: 110 - 240 V AC, 50/60 Hz.
• Terminals: 4 digital screw inputs (SW1 to SW4).
• Wireless Frequency: Dual Z-Wave Network. 868.4 MHz for standard Mesh (indoor range up to 40m) and 864 MHz for Long Range.
• Physical Dimensions: 37 x 42 x 16 mm (ultra-compact design, ideal for flush mounting in the wall box behind the switch).
• Thermal Protection: Includes safety features to internally shut down and notify the Gateway in case of overheating.

Improve the intelligence of your old switches. Buy your Shelly Wave i4 LR now at ShellyMadrid.com, your home automation specialist in Spain, and receive the best local support.
