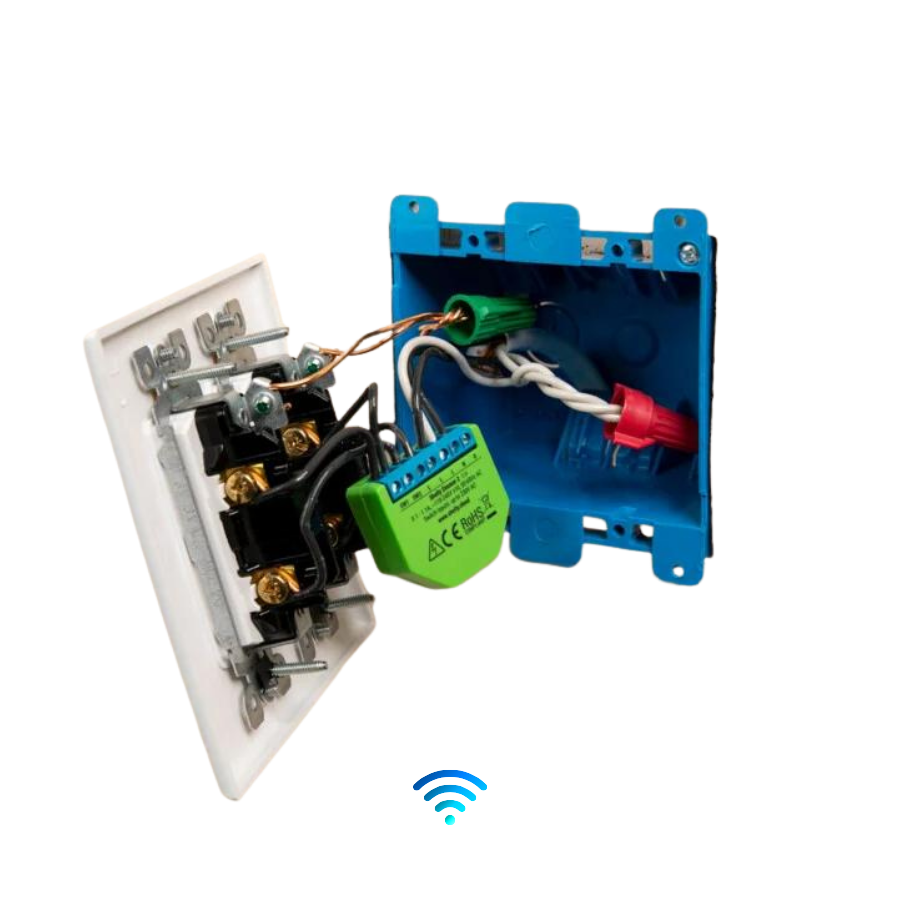

Shelly Dimmer2 Advanced Settings: Optimize Your Smart Lighting

The Shelly Dimmer2 is a powerful device that allows you to transform any dimmable bulb into a smart light. However, to get the most out of it and avoid issues like flickering or unexpected behavior, it's crucial to understand its advanced settings.

This manual breaks down each option, explaining its function and why it is technically important.

---

1. Calibration

Calibration is the fundamental process by which the Shelly Dimmer2 "learns" the characteristics of your bulbs. It's vital for proper operation and smooth dimming.

• Dimming type:
  • Leading edge: This dimming method is older and is commonly used with resistive loads (such as traditional incandescent bulbs) and some inductive loads. The Shelly Dimmer2 cuts the first half of each half-cycle of the AC waveform.
    • Technical explanation: It works well with halogen and incandescent bulbs, which are pure or nearly pure resistive loads. Using it with incompatible LED or CFL bulbs can cause flickering, noise, or even damage the bulb.
  • Trailing edge: This method is more modern and is primarily used with capacitive loads, which are typical of most dimmable LED and CFL bulbs. The Shelly Dimmer2 cuts off the last part of each half-cycle of the AC waveform.
    • Technical explanation: This is the preferred method for dimmable LEDs and CFLs because it reduces the inrush voltage and current at the beginning of each cycle, which extends the life of the bulbs and minimizes noise or flickering. This is crucial for proper LED function.
• Autodetect type of load during calibration:
  • If this option is enabled, the Shelly Dimmer2 will automatically attempt to identify whether the connected load requires leading or trailing phase-cut dimming during the calibration process.
  • Technical explanation: The device sends a series of pulses and analyzes the load's response to determine its nature (resistive, inductive, capacitive). This is very useful if you're unsure of the type of bulb you have or if you have a combination.
• Calibrate with Bypass:
  • This option is only available if you've connected a Shelly Bypass to Dimmer2. While Bypass is typically used when the load is very low (less than 10-20W, such as low-power LEDs) to ensure a continuous power line to the Shelly, this calibration option is different.
  • Technical Explanation: Some low-quality LED bulbs or those with very sensitive electronics may exhibit erratic behavior (such as flickering or not turning off completely) even with the correct dimming setting. Calibrating with the Bypass engaged, even if the load is larger than what would normally require a Bypass, can help Dimmer2 better understand these problematic loads and optimize its dimming performance. It provides an auxiliary current path that can stabilize the circuit during Dimmer2's learning phase.

---

2. Warm-Up

Some LED bulbs, especially low-quality ones or those that simulate incandescent (filament), require an initial "boost" of energy to properly turn on at very low brightness levels (below 10%). Warm-Up solves this problem.

• Warm-up enable: Enable or disable this feature.
• Set warm-up brightness (10-100%):
  • This is the initial brightness level at which the Shelly Dimmer2 will turn on the bulb for a short period before going to the desired brightness (if this is too low).
  • Technical explanation: By applying a higher brightness pulse (e.g. 30%) at the beginning, you ensure that the LED bulb's electronic components fully "wake up" and begin conducting current stably, thus avoiding flickering or "no-lighting" when trying to turn on at very low brightness.
• Set warm-up time (20-1000 milliseconds):
  • Defines the duration of that initial brightness pulse.
  • Technical explanation: The time must be long enough for the bulb to start flashing, but short enough so that the human eye doesn't perceive it as an annoying "flash." A time of 20-50 ms is usually sufficient.

---

3. Anti-flickering debounce

This setting helps stabilize the power supply signal, minimizing light bulb flickering, especially in environments with power fluctuations or highly sensitive loads.

• Anti-flickering debounce (50-150):
  • Defines a time threshold or "dead zone" during which the Shelly Dimmer2 will ignore small variations or "noise" in the mains signal or load response.
  • Technical explanation: Flickering can be caused by electrical noise in the mains, incompatibilities between the dimmer and the bulb, or even small interruptions in the phase of the AC signal. A higher "debounce" value means that the Shelly will be more "tolerant" of these small fluctuations, smoothing the response and reducing the likelihood of visible flickering. A lower value may cause the Dimmer2 to react to every slight variation, which could induce more flickering. Experiment with this value if you experience flickering.

---

4. Fade Rate

The Fade Rate controls the speed at which the light changes from one brightness level to another when you dim it.

• Fade rate speed: 1x, 2x, 3x, 4x, 5x
  • 1x: This is the default (slowest) fade speed.
  • 5x: It is the fastest speed.
  • Technical explanation: This setting does not affect electrical functionality, but rather the user experience. A slower speed (1x, 2x) provides smoother, more gradual light transitions, ideal for relaxing environments or subtle changes. A faster speed (4x, 5x) makes the brightness change almost instantaneous. The choice depends on your personal preferences and the ambiance you want to create.

---

5. Minimum brightness

This parameter sets the lowest brightness level at which the bulb will operate correctly.

• Minimum brightness, percents:
  • You can set a percentage value (e.g. 5%, 10%) below which the Shelly Dimmer2 will not lower the brightness.
  • Technical explanation: Many dimmable LED bulbs have a "cutoff point" below which they cannot dim stably or simply shut down. If your bulb flickers, dims, or buzzes when dimmed to a very low level, this parameter allows you to set a minimum threshold to prevent this unwanted behavior. When set, the Shelly will not attempt to dim below that percentage, ensuring stable operation throughout the bulb's usable range.

---

6. Transition Time

Transition time controls the speed at which the light turns from off to its desired brightness, and vice versa, when fully on/off.

• On/Off Transition time, milliseconds:
  • Defines the duration in milliseconds it takes for the light to go from 0% to 100% brightness (or preset brightness) when turned on, and from its current brightness to 0% when turned off.
  • Technical explanation: Similar to Fade Rate, but applied to the complete on/off cycle. A value of 0 ms will result in an instant on/off. Higher values ​​(e.g., 500 ms, 1000 ms) will create a smooth, gradual fade-in or fade-out effect, which can be more pleasing to the eye and create a more comfortable atmosphere. This is ideal for bedrooms or relaxation areas where you don't want a sudden on/off.

---

By understanding and adjusting these parameters, you can fine-tune your Shelly Dimmer2's performance to perfectly match your bulbs and the lighting experience you want in your smart home. Experiment with them to find the perfect setting!
